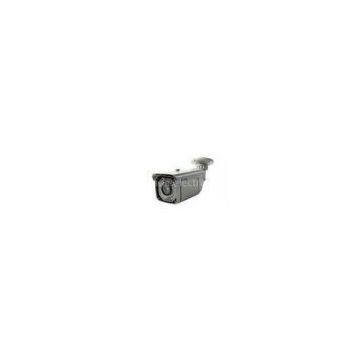

600 / 700TVL 86pcs LEDs CCD CCTV Water-proof IR Bullet Cameras 4-9mm IR Varifocal Lens

MODEL

TWD-I502

TWD-I502-480

TWD-I502-540

TWD-I502-560

TWD-I502-600

Image?Sensor

1/3\"?Sony?Super?HAD?CCD?II

Horizontal?Resolution

420TV?Lines

480TV?Lines

540TV?Lines

560TV?Lines

Color:?600TV?Lines,?

B/W:?650TV?Lines

Signal?System

PAL?/?NTSC

Picture?Pixels

PAL:?500(H)*582(V),

?NTSC:?510(H)*492(V)

PAL:?752(H)*582(V),?

NTSC:?768(H)*494(V)

PAL:?795(H)*596(V),?

NTSC:?811(H)*508(V)

LED?No.

86?pieces?of?F5?LEDs

Ranging?Distance

85-90m

Infrared?Wavelength

850nm

Sync?System

Internal?Synchronization

S/N?Ratio

>48dB

>50dB?(AGC?OFF)

Lens?

4-9mm?/?9-22mm?IR?varifocal?Lens?(Metal?roller?system?design)

Electronic?Shutter

PAL:?1/50?-1/100,000?Sec,?NTSC:?1/60?-1/100,000?Sec

Gamma?Correction

r=0.45

OSD?menu

/

YES?(4?Languages)

Communication?Mode

/

RS485?control,?PELCO-D?/?P

White?Balance

AUTO

Auto?(ATW1,?ATW2,?AWC-SET,?

MANUAL)

BLC

AUTO

ON?/?OFF?(2AREA),?HLC

AGC

AUTO

High?/?Middle?/?Low?(6dB-40dB)

Image?Function

/

Digital?WDR

Noise?Reduction

/

2D-DNR

D/N?Mode

/

Auto?/?Day?/?Night?/?Ext.?

Control?for?option

Minimum?Illumination

0Lux?(IR?ON)

Day:?0.1Lux/F2.0,?

Night:?0.001Lux/F2.0,?

0Lux?(IR?ON)

Video?Output

1.0Vp-p,?75Ω

Power?Supply

DC12V??20%?

Operation?Temperature

-10℃~+50℃

Case
