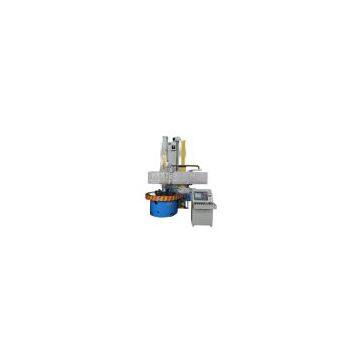

CK5116 CNC single-column vertical lathe

Brand Name	DAHUA		Place of Origin	China
Model Number	CK5116

CK5116 CNC single-column vertical lathe()
1. This series machine is suitable for machining in industries of motor,turbine, aerospace, mining as well as metallurgy, etc.
2. It can make rough and accurate turning the internal and external cylindrical surface, conical surface, plane,head face,grooving,severance,constant linear cutting, cutting thread,etc.
3. CNC control system of Siemens or Fanuc can be available.
4. Working table adopts hydrostatic guideway.The spindle is to use NN30(Grade D) bearing and able to turn precisely,Bearing capacity of bearing is good.
5. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical equipment are used famous-brand products in China.
6. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
7. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part has good quality.
8.We can collocate cooling system, escape of chips system and close shield of complete appliance according to consumers\\\\\\\\' need.
9.The stepless gear shift lathe has not only functions of turning like common lathe, but also has functions of constant linear cutting and cutting thread.

Name	CK5116
Max. turning diameter(mm)	1600
Max. height of workpiece(mm)	1200
Max. weight of workpiece(t)	5
Table diameter(mm)	1400
Step of table speed change(step)	16/stepless
Speed range of table(r/min)	2.5-160
Max. torque of table(KN.m)	25
Power of main motor(kw)	30
Max. cutting force of tool ram(KN)	25
Ram stroke of vertical tool post(mm)	1000
Fast moving speed of vertical tool post(mm/min)	2000
Horizontal travel of vertical tool post(mm)	-20—915
Feed range and speed-step of vertical tool post(mm/min)	0.1-2000 stepless
Max. section size of tool(mm)	32*32
Torque of feed AC servo motor(N.m)	11/16
Crossbeam travel(mm)	800
Crossbeam speed(mm/min)	440
Crossbeam fluctuation motor power(kw)	2.2
Position accuracy(mm)	0.03/1000
Repeat positioning accuracy(mm)	0.015/1000
