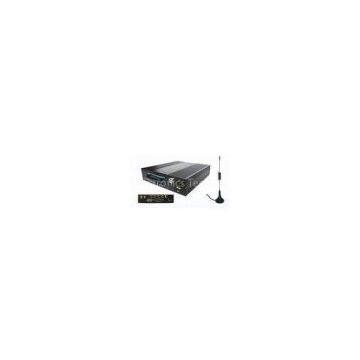

4 Channel H.264 D1 SD Vehicle 3G Mobile Security DVR Built - In GPS, 2G / 3G Modules
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
H.264 ASIC 3G SD Mobile DVR For Car Black Box Camera With 4 Channels Alarm Input for Vans
-
PAL And NTSC 4 CH Audio And Video SD Mobile DVR with RS485 Control for Trains Security
-
H.264 Full D - 1 Resolution NTSC 30pfs / PAL 25fps SD Mobile DVR Systems 1 / 2 / 4 channel
-
1 - 4 Channels G.726 GPS 3G SD Mobile Car DVR With RS232 / RJ45 port for Ambulances
-
H.264 HDD Hard Disk IP54 3G HDTV Digital Mobile DVR Recorder 1/ 2 /4 CH For Taxis
-
3G 4 Ch H.264 2.5 \" HDD Mobile DVR Recorder support Hard disk and SD card For Military
Product Details
| Brand Name | Zhengqi | Place of Origin | China | |
Product Description
4 Channel H.264 D1 SD Vehicle 3G Mobile Security DVR Built - In GPS, 2G / 3G Modules
Descriptions
VC-MDR700X Mobile DVR adopt highly integrated H.264 ASIC, its image quality is excellent, in addition to using the hard disk as a video storage medium or it can use SD card as an auxiliary video storage medium to improve the stability of record data. Through the built-in USB port the video data can be backed up quickly.
VC-MDR700X In addition to integrated vehicle status monitor, it can support built-in GPS, 2G/3G modules.
The playback software of MDR700X can not only achieve the synchronous and asynchronous multi-channel playback, the video and GPS also enables synchronization of data such as playback, convenient video analysis.
VC-MDR700X can be widely used in buses, taxis, police cars, law enforcement vehicles, and other various types of vehicles.
|
Key Features |
l? H.264 Compression, Record Resolution Up to D1
l? Dual Stream for Recording and Network transmit
l? Support Hard disk and SD card recording, USB and Network Backup
l? Pluggable hard disk 2.5 \" HDD tray, with mature vibration reduction technology
l? Independent 6 Vehicle status monitor interface, of which one can speed
l? 8-32V power input
l? Vent-free enclosure design
|
Specifications |
|||
|
Model |
VC-MDR7001 |
VC-MDR7002 |
VC-MDR7004 |
|
Video Input |
1 Ch |
2 Ch |
4Ch |
|
Video Input Parameter |
1.0Vp-p, 75 Ohms, ? Aviation plug |
||
|
Video ??Output |
1 Ch |
||
|
Video Output? Parameter |
1.0Vp-p, 75 Ohms, ? Aviation plug |
||
|
Video ??Compression |
H.264 |
||
|
Preview ?Resolution |
D1 resolution(PAL:704×576, NTSC:704×480) |
||
|
Dual Stream-Main |
30FPS@D1(NTSC) 25FPS@D1(PAL) |
60FPS@D1(NTSC) 50FPS@D1(PAL) |
120FPS@CIF(NTSC) 100FPS@CIF(PAL) |
|
Dual Stream-Aux |
30FPS@CIF(NTSC) 25FPS@CIF(PAL) |
60FPS@CIF(NTSC) 50FPS@CIF (PAL) |
30FPS@CIF(NTSC) 25FPS@CIF(PAL) |
|
Record Resolution |
D1 |
D1 |
CIF |
|
Dual Stream Network transmission |
Independent? 4CIF(HA-01D/02D Only), CIF/QCIF |
||
|
Playback Frame rate |
PAL:1～25 fps , NTSC:1～30 fps |
||
|
Record band rate |
16K～2Madjustable, Customizable (unit:bps) |
||
|
Audio Input |
1Ch |
2Ch |
4Ch |
|
Audio Input Parameter |
2Vp-p Line, 1OK Ohm , Shard the? Aviation plug with video input |
||
|
Audio Output |
1Ch |
||
|
Audio Output Parameter |
3Vp-p, 600ohms, Shard the? Aviation plug with video output |
||
|
Built-in 2G/3G module |
Optional |
||
|
Built-in GPS Module |
Optional |
||
|
Bui |
