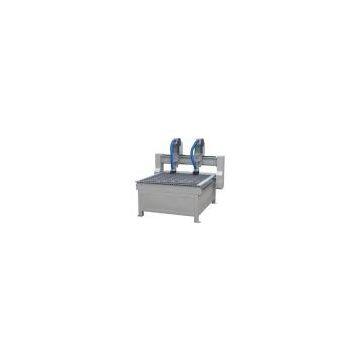

Double-Head CNC Router
- 100 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | TZJD | Place of Origin | China | |
| Model Number | TZJD-1224D |
Product Description
Product Features:
1. Cast heavy-thickness square tube welding structure, solid without distortion.
2. Germany Ballscrew system for Z axis, high-efficiency wrking. Rack gear for X Y axis, high-speed with best rigidity.
3. Taiwan HIWIN Square orbits. High-efficiency & Long-time life.
4. Water-cooling spindle, can be working for a long term.
5. Brolen-point memory, ensures the continuity of work when inciddent happens.
6. DSP Controller system, conveniently to operate.
7. Water-cooling Spindle & Air-cooling Spindle, fasting-speed & working-efficiency.
8. U flash interface.
9. Software compatibility: Types/Artcam/astmate/Wentai & these CAD/CAM designing software.
10. Water-cooling system, mainly improve the tools working-life. Low noise & lowest maintenance.
11. Double motors for Y axis, confirm the working under stable.
12. Tool sensor system, save extra time, improve working-efficiency.
13. Special dustproof device, confirm the working environment cleanly.
Specification Parameter
Description | Parameter |
TZJD-1224D | |
Working Area (X*Y*Zmm) | 1200mm*2400mm*100mm |
Max Engraving Speed | 8000mm/min |
Frame | Cast Square tube welding |
XYZ travelling positioning accuracy | ±0.03/300mm |
XYZ repositioning accuracy | ±0.02mm |
Spindle power(KW) | 1.5 KW/2.2KW/3KW/4.5KW *2 |
Max. Power Consumption(Without spindle) | 1.2KW |
Spindle Speed | 6000-24000rpm |
Resolution | 0.005mm |
Repeatability | 0.01mm |
Voltage | AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
Drive motor | Stepper(option:Servo motor) |
Working table | T-Slot with PVC board |
Working Dictate | G Code*.u00*.mmg*.plt |
Operating system | Nc-studio/DSP optional |
Different diameters blade | ф3.175, ф6mm, ф12.7mm, ф2,ф1, etc. |
Software environment | Windows98/2000/xp |
Interface | USB |
Flash memory | 128M(U Disk) |
Software Compatability | Type3,,Ucancam,Artcam Software) |
Running Environemt | Temperature: 0℃~45℃ |
Relative humidity: 30%~75% | |
Machine available(option) | Dust collector system, spindle cover, Japan Panasonic Servo motor, vacuum absorption table & vacuum pump system, Auto-oiling system, Tool-sensor, |
Applicable materials:
Wooden industry: harden wooden relievo engraving, classical furniture and wooden crafts,gift box,jewel case engraving.
Advertising industry:
plate & mould engraving; Atchitects' models, badge, display board, organization's symbol, door plate,
process decoration, furniture decoration.
Metal industry: steel, copper, aluminum,stainless steel, iron, etc.
