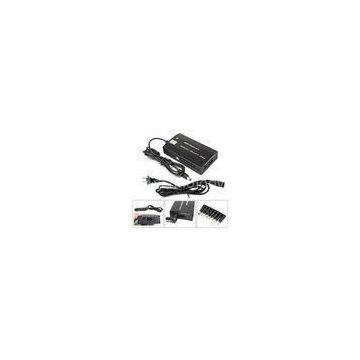

LCD Universal Power Adapter -ALU-100B3K AC DC Adapter 100 - 240V, 100W

AC DC Adapter 100-240V, 100W Universal Power Adapter

Item No: ALU-100B3K

Special Features:

1. 8 adjustable voltages

2. LCD show

3. 8 output pins

4. 1 USB port :5V@1A

5. Max Power: 100W (For Home and Car use)

Specifications:

Input:AC100-240V 1.3A 50-60Hz/DC12(9-15V)? 10A????

Output:12V/15V/16V/18V@5.5A? 19V/20V/22V/24V@4A(MAX:≤100W)

USB port :5V@1A

8 Output pins:

A:6.0*4.4/B:6.3*3.0/C:5.5*2.5/D:5.5*2.1/E:5.5*1.7/F:4.8*1.7/G:4.0*1.7/H:3.5*1.35

7 Optional pins:

J:7.4*5.0(DELL)/O:7.4*5.0(HP)/M:4 hole/N:7.9*5.0/I:3 hole/K:5.5*1.7/L:5.5*3.0????????

Electrical?Features:

·?Input?no?load?power?consumption:?0.5W?(maximum)?at?115/230V?AC

·?Efficiency:?＞88%(TYP)

·?Line?regulation:?±?5%

·?Load?regulation:?±?5%

·?Output?over?shoot:?10%?(maximum)

·?Output?ripple?and?noise:?1%?(maximum)

·?Output?rising?time:?20?minutes?(maximum)?at?115V?AC

·?Output?hold?up?time:?8?minutes?(minimum)?at?230V?AC

·?Protection:?OCP, ?OVP, ?SCP?and?OPP

·?Dielectric?withstand?voltage:?3KV, ?5mA, ?60?seconds

·?Leakage?current:?0.25mA?at?230V?AC

·?Operating?temperature:?0?to?40°C

·?Operating?humidity:?20?to?80%?RH

·?Storage?temperature:?-10to?70°C

·?Storage?humidity:?10?to?90%?RH

Production?Features:

·?Sound?anti-jamming?performance, ?low?DC?ripple, ?safe?reliable?and?stable

·?Broad?input?voltage?range?90V?to?265V?is?compliant?with?global?standard

·?Lead-free?soldering, ?eco-friendly?and?safe

·?OEM?100%?compatible?with?various?brands?of?laptops:?for?Dell, ?HP, ?Sony, ?Acer?and?etc.

·?With?CE/RoHS/FCC?mark?to?guarantee?the?high-quality；with?full?power;
multi-protection:over-current;over-temperature;over-voltage;short-circuit?prevention;disturbing-?prevention, ?also?with?SMT?tag?mounting?on?the?PCB?
and?also?assemble?insulating?and?shielding.

Other?Adavantages:

·?Warranty:?12months

·?Payment?terms:?T/T, L/C, Paypal, ?Western?Union, ?etc

·?Shipment?ways:?by?express, air, ?sea

·?Packing:?neutral?package, OEM?package?welcome

Please?make?sure?that?the?polarity?of?DC?connector?plug?connect?correct, ?select?output?voltage?to?suit?to?laptop?before?use.
