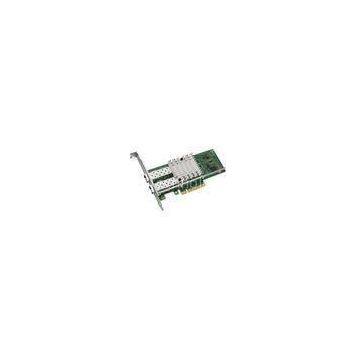

Interface Ethernet Network Dual Port 1000Mbps Optical Gigabit Adapter Card For Servers

Brand Name	Jinxing		Place of Origin	China
Model Number	10002EF-SM-10KM

Delivery Time:7-28days
Certification:CE、ROHS、 FCC

Interface Ethernet Network Dual Port 1000Mbps Optical Gigabit Adapter Card For Servers

Ethernet Dual PortOptical GigabitAdapter 10002EF

?Ethernet server adapter has been tested for compatibility, available from 10/100 Mbps to 1000Mbps and 10 Gbps, optical fiber or copper, fiber optic module can be adaptive plug replacement, extensive using PCI Express * and single to quad ports configurations. New features include the adoption for Microsoft * Device Manager and other tools PROSet utility to achieve a more complete installation and management functions.

?Gigabit EF Dual Port Optical GigabitAdapter

Products Technology Paraments Description

The Gigabit EF Dual-Port Ethernet Optical Gigabit Adapter are Intel\'s third generation of PCIe GbE Ethernet Optical Gigabit Adapter. Built with the Intel? 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.

Product information

Dual-port Ethernet Optical Gigabit Adapter designed for multi-core processors and optimized for virtualization

High-performing, 10/100/1000 Ethernet connection Reliable and proven Gigabit Ethernet technology from Intel Corporation Scalable PCI Express* interface provides dedicated I/O bandwidth for I/O-intensive? networking applications Optimized for virtualized environmentsFlexibility with iSCSI Boot and choice of dual- port and quad-port Ethernet Optical Gigabit Adapters?

Designed for Multi-Core Processors

Optimized for Virtualization

Virtual Machine Device Queues (VMDq)

End-to-endWired Security

On-Board Management Features

Specifications and Sarameters

The Basic Specifications

Model	10002EF-SM-10KM
Product Type	Ethernet Optical Gigabit Adapter
Controller chipset	Intel ? 82576 processor chip Gigabit Ethernet controller: design for the next generation of Gigabit performance and multi-core processor, industry-leading and high energy-saving controller
bus type	PCI Express, compatible with x4, x8 and x16 PCI-E slot
Whole Duplex	Compatible whole duplex and half duplex
Network interface type	SFPSlot*2(1000BASE-SX, 1000BASE-LX, 1000BASE-ZX), LC fiber
Transmission speed Mbps	1000
network interface type	LC fiber
transfer rate Mbps	1000
transmission medium type	LC fiber, Shielded Cable is required for EMI compliance MMF 62.5/50 um
networking standard	IEEE802.3 (1000BASE-SX/LX/ZX)
Date Rate/Distance	1.25G/10km
Fiber Module	FS-1310-1100
Long-range awaken function	support
full duplex	compatible full-duplex and half duplex
Working Temperature	0° C to 55° C (32° F to 131° F)
Storage Temperature	-40° C to 70° C (-40° F to 158° F)
Storage humidity	90% non-condensing relative humidity at 35° C
typical power	?2.2W
Size	16.74 cm(6.59 in)* 6.81 cm (2.681 in)
Bracket	High bracket 12.00 cm (4.725 in) , small bracket 7.92 cm (3.12 in)
