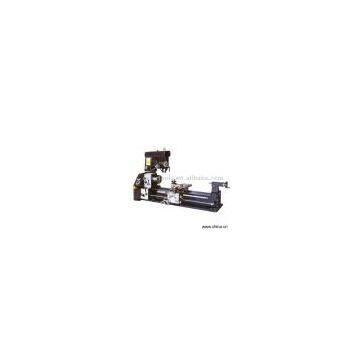

Sell 3-in-1 Lathe, Mill and Drill Machine

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Specifications: 1) Model no.: 904-1340 2) Swing over bed: 339mm 3) Swing over table: 190mm 4) Distance between centers: 990.6mm 5) Spindle: D1-4 Camlock 6) Spindle bore: 28.58mm 7) Headstock taper: MT4 8) Tailstock taper: MT3 9) Thread: inches 7-52tpi, metric 0.35-6.5mm 10) Cross-slide travel: 194mm 11) Mill head taper: R-8 12) Table: 451 x 165mm 13) T-slot width: 11.11mm 14) Spindle diameter: 70mm 15) Working height: 100mm (min.), 340mm (max.), 178mm (faceplate) 16) Drill capacity: 16mm 17) Chuck arbor taper: R-8 to JT3 18) Spindle to table distance: 100mm min., 340mm max. 19) Spindle to support column: 241.3mm 20) Motor: DC 1.1kW or 1.5HP 21) Speed Range: 50-1,500rpm/600-3,000rpm 22) Weight: 350kg/300kg 23) Crate size: 1,263 x 578 x 1,100mm Features: 1) 39" or 24" between centers 2) Variable speed control 3) X-axis and Y-axis power feed 4) 180V or 90V DC motor 5) R8 or MT3 spindle 6) Not for sales to the USA, Canada and Mexico 7) We have exported our products to many countries
