Corrugated Copper Tape RF Coaxial Cable, RF 5/8 Feeder Cable For Wireless Communication
- T/T L/C D/P D/A
- 7 days
You May Like
-
Smooth Copper Tube RF Coaxial Cable, 1/2 RF Feeder Cable For Tunnels, Military
-
Microwave Telecom RF Feeder Cable, 3/8 RF Coaxial Cable With PE Jacket For Metro Stations
-
Braided RG58A/U Coaxial Cable, 50 Ohm Cable With Low Signal Loss For CCTV, Broadcast
-
PVC Jacket 50 Ohm Antenna Cable, Tinned Copper Wire Braided RG58 Coaxial Cable for CCTV
-
RG213/U 50 Ohm Coaxial Cable With PVC Jacket, High Voltage Bare Copper Braided Cable
-
Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission
Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | RF cable 5/8’’ |
Product Description
Certification:CE, ISO9000, ISO14001,RoSH

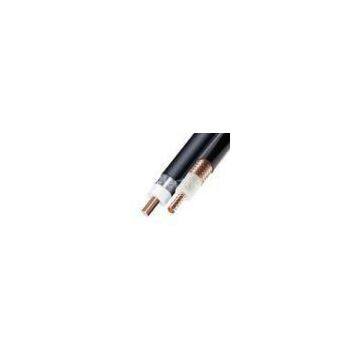

Corrugated Copper Tape RF Coaxial Cable, RF 5/8” Feeder Cable For Wireless Communication
Outer conductor is corrugated copper tape. PE for outer jacket.Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE.
Applications:
metro stations wireless In-building solutions tunnels Wireless mobile communication Microwave telecommunication Military useSpecification:
|
construction |
Testing item |
Unit |
Standard |
|
Inner conductor |
material |
- |
smooth copper tube |
|
diameter |
mm |
7.05 |
|
|
Outer conductor |
material |
- |
corrugated copper tape |
|
diameter |
mm |
19.80 |
|
|
jacket |
PE or halogan free |
mm |
22.20 |
|
mechanical performance |
single bending radius |
mm |
90 |
|
repeated bending radius |
mm |
200 |
|
|
electrical performance |
inner conductor resistance |
Ω/km |
≤0.49 |
|
outer conductor resistance |
≤1.37 |
||
|
Capacitance |
pF/M |
76 |
|
|
Characteristic impedance |
Ω |
501 |
|
|
Velocity |
% |
89 |
|
|
Attenuation 20℃(max) |
100MHZ |
dB/100m |
1.55 |
|
200MHZ |
2.24 |
||
|
300 MHZ |
2.78 |
||
|
450 MHZ |
3.46 |
||
|
800 MHZ |
4.75 |
||
|
900 MHZ |
5.0 |
||
|
1000 MHZ |
5.38 |
||
|
1500 MHZ |
6.78 |
||
|
1800 MHZ |
7.54 |
||
|
2000 MHZ |
8.02 |
||
|
2500 MHZ |
9.15 |
||
|
3000 MHZ |
10.20 |
||
|
VSWR |
0.01GHz-3GHz |
- |
1.20 |
|
820MHZ-960MHz |
1.0 |
||
|
1.7GHz-1.9GHz |
|||
|
2.1GHz-2.2GHz |
Competitive Advantage:
