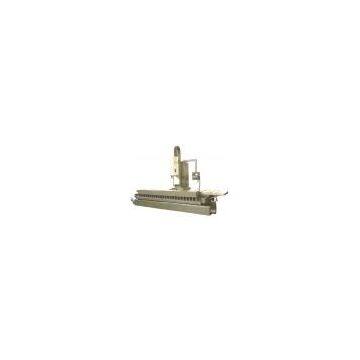

ZK52 Moving Column CNC Milling Machine Series
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | ZK52 Series |
Product Description
Moudlar design; State-enterprise engineering projects; Hardenging&FIFE guidways fit, had better function.
Wide Number 983mA CNC system, servo-motor drived. Frequency control in main motor, controlled 3 axes.
Cutters changing by air-press.
Chinese-English by LCD display, easy to programe and operate.
Centralized lubrication unit.
Having strong torque on low speed cutting. To be heavy-duty machining.
Automatic changing up and down.
The machine is not only suitable for all machinery industries in small and medium production, but also the best equipment for teaching and read learning of university, occupation college and technician school.
| NO. | Item | Unit | ZK52 |
| 1 | Table size(L×W) | mm | 5240x500 |
| 2 | Table travel(X axis) | mm | 5000 |
| 3 | Table travel(Y axis) | mm | 500 |
| 4 | Spindle vertical travel(Z axis) | mm | 540 |
| 5 | Distance between spindle nose to table surface | mm | 600 |
| 6 | Main motor power | Kw | 4 |
| 7 | Spindle speed range(High-low speed gear) | r/min | 50—3000 |
| 8 | Max. Spindle torque | N.m | 150 |
| 9 | Max. Spindle axial load | N | 10000 |
| 10 | Rapid travel speed(X,Y axis) | mm/min | X,Y:5000 |
| 11 | Rapid travel speed(Z axis) | mm/min | Z:4000 |
| 12 | Range of feed | mm/min | X,Y:1-3000,Z:1-2000 |
| 13 | Tool nose |
|
BT40 |
| 14 | Position accuracy of coordinate | mm | 0.03 |
| 15 | Repeatabiltity | mm | 0.02 |
| 16 | Controlled axes/simultaneously |
|
three-axis linkage |
| 17 | CNC system |
|
983Ma |
| 18 | Air-press | Pa | 60x10 5 |
