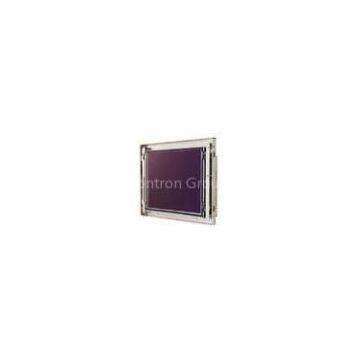

Rugged 15" XGA TFT Open Frame Panel LCD Monitor With VGA Input, USB / RS232 Controller

LCD Panel

Display Type : 15\" XGA TFT LCD
Resolution : 1024x768
lor : 16.2M
Luminance : 250 cd/m2
View Angel : 150°(H) , 135°(V)
Pixel Pitch : 0.297 x 0.297 mm
Contrast Ratio : 700 : 1
Response Time : 8 ms
Power Consumption :11.27W
LCD MTBF : 50,000hrs

Signal input

VGA ( 15 pin D-sub connector ) + Audio input ( audio jack )

Protect glass

3 mm strengthen glass

OSD

Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall

Touch Screen ( optional )

Internal USB or RS-232 interface controller
Type: Analog resistive type : 25VDC ≥ 20MΩ
Resolution: continuous
Light transmission: 80% or more
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 35 Million
Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux

Signal connectivity ( optional )

AV input (RCA)

DC power input ( optional )

Wide range DC 8V-30V input

Power Supply

Input: 100~240VAC,50/60Hz
Output: DC12V@ 4A /48W ,external ac adapter

Construction

Heavy duty steel

Environment

Operating temperature: 32 °F~113 °F (0 °C to 45 °C)
Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity: 10% to 95%@ 40°C , on-condensing
Vibration: 10 ~ 150Hz, 0.15mm 10 cycles 1G
Shock: 30G peak acceleration (11 msec. duration)

Safety

CE/FCC/Rohs

Dimension W x H x D ( mm )

Dimensions: 378 x 295 x 50mm
Packing Dimension:520x180x 430mm

Weight ( kgs )

NET weight: 5.6KG
Gross weight: 6.5KG
