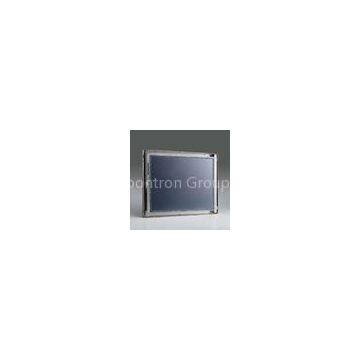

19" SXGA TFT LCD Touch Screen Open Frame LCD Monitor With VGA / Audio Input

LCD Panel

Display Type : 19\" SXGA TFT LCD
Resolution : 1280 x 1024
lor : 16.7M
Luminance : 300 cd/m2
View Angel : 178°(H) , 178°(V)
Pixel Pitch : 0.294 x 0.294 mm
Contrast Ratio : 1000 : 1
Response Time : 5 ms
Power Consumption : 23.25 W
LCD MTBF : 50,000hrs

Signal input

VGA ( 15 pin D-sub connector ) + Audio input ( audio jack )

Protect glass

3 mm strengthen glass

OSD

Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall

Touch Screen ( optional )

Internal USB or RS-232 interface controller
Type: Analog resistive type : 25VDC ≥ 20MΩ
Resolution: continuous
Light transmission: 80% or more
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 35 Million
Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux

Signal connectivity ( optional )

AV input (RCA)

DC power input ( optional )

Wide range DC 8V-30V input

Power Supply

Input: 100~240VAC,50/60Hz
Output: DC12V@ 4A /48W ,external ac adapter

Construction

Heavy duty steel

Environment

Operating temperature: 32 °F~113 °F (0 °C to 45 °C)
Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity: 10% to 95%@ 40°C , on-condensing
Vibration: 10 ~ 150Hz, 0.15mm 10 cycles 1G
Shock: 30G peak acceleration (11 msec. duration)

Safety

CE/FCC/Rohs

Dimension W x H x D ( mm )

Dimensions:468.6x370.6x50mm
Packing Dimension:600x540x 180mm

Weight ( kgs )

NET weight: 8.8KG
Gross weight: 10.0KG
