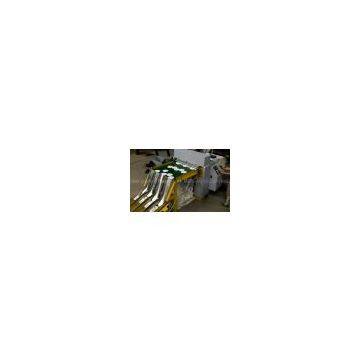

Automatic Waste Clearing and Counting Die Cutter

I. Main technical parameters

II. Performances and applications

 1. Patented product, high technical assurance, each performance index has exceeded the level of other counterparts. Patent No. ZL 200920267779.8

 2. Load material: Electric roll material loading, which is easy and fast.

 3. Feed material: the photoelectric eye tracking system assures the synchronization of material feeding and die-cutting speed.

4.Automatically fold and flatten the cornering materials at the paper core. It realized the multistage adjustment of the folding degree. No matter how bent the product is, it can be flatten or refolded towards other directions.

5. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.

 6. Die-cutting area: 900mm*400mm. (it can also be tailored according to the customers’ requirements)

 7. Maximum die-cutting speed can be up to 9000 times/h, which indicates the significant high production efficiency.

8. The die-cutting force is provided by a 7.5kw inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

9. Adapt flat bed die-cutting mode, and the cutting boards are extremely cheap.

10. The oscillating lower cutting board makes the die-cutting process more steady compared to other similar products and magnificently increased the service life of the cutting board.

11. Finished products are pulled out by two rollers. Comparing to other similar die-cutting machines which need extra press cutter to cut the joints, our machine can not only save the cost of press cutters of each machine, but also avoid the troubles of installing and debugging the press cutters, which can magnificently save time. Especially, it can assure better quality of the product appearance when the die-cutting without joints can be realized under many conditions.

12. Clear away the waste automatically for the products in round and square shape.

13. Through micro-computer controller, it realized automatic counting, automatic stowing in block by lot for better packaging.
