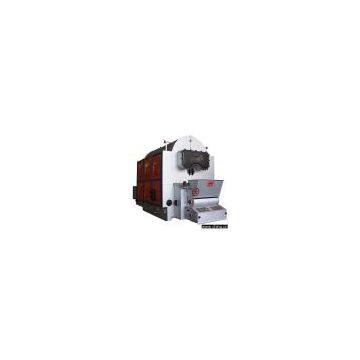

2MT Single Cylinder Instantly Installed Boiler

Place of Origin	China

Specifications:1) Type: DZL2-1.0-AII instantly installed steam boiler2) Actual evaporation: 2MT 3) Operating pressure: 1.0MPa4) Hydraulic tested pressure: 1.65MPa5) Fuel category: soft coal II6) Exhaust smoke temperature: 175oC7) Water supply temperature: 20oC8) Steam temperature: 183oC9) Power: 21.2kW10) Boiler thermal efficiency: 78.8%11) Max. coal consumption: 335kg/hThe boiler is with single cylinder horizontal instantly installed three-stroke smoke fire tubes. The fire tube is of low investment, convenient installation, quick start-up and reasonable structure covering a small area. The main structure features are as follows:1) Large heated area 2) Light chain-grate stoker, reliable, small coal leakage, good smoke and dirt elimination, and time saving for installation and maintenance3) Reasonable wind distribution facilitates for fuel burning4) Increased effective area of the boiler bar, improved burning extent, and great cola adaptability The atmospheric pollution exhaust of the boiler complies with the national environmental standards:1) Max. smoke dirt exhaust density: 32) Smoke blackness limit: level 1 of Lingeman 3) Max. exhaust density of sulfur dioxide and nitrogen oxide: 900mg/m34) Initial smoke dirt exhaust density: 3Packing:Max. transportation size: 5.7 x 2.6 x 3.38mMax. transportation weight: 21MT producing area:China payment:30% deposit, balance after shipment
