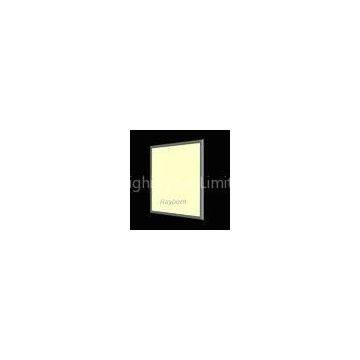

600*600mm 42W Dimmable Flat Panel Led Lights SMD3014 For Factories

600*600mm 42W Dimmable Flat Panel Led Lights SMD3014 For?Factories

Product Specifications::

LED Panel Lightings/Flat LED Panel Light 42W
Item No.:RB-PL-6060-A
Input Voltage: AC 85~265V/ 50-60HZ
LED Power:42W
LED Quantity: 432 PCS SMD 3014
Power Factor:>0.92;Power Efficiency:>0.88
LED Luminous Flux Warm White,Nature White, Pure White
LED Panel light Viewing Angle: 120 degree
Color Temperature Warm White 3000K~3500K
Nature White 4000K~4500K,Pure White 5500K~6500K
Luminous Flux:2400LM(6000K)
Color Rendering Index : Ra≥80
Working Temperature: –40oC~50oC
IP Grade: IP54
Body Size: 600*600*11.5mm
Material: Aluminium /SPCC/PMMA
Working Life-span: 50000 H
Certificate CE & RoHS &TUV


?

Features:

1. All sides are lined with LED\'s to grant optimal illumination.
2. Special different view angles,? mixing lighting design. Great light evenness,? no dark zones.
3. High light output at a reduced energy consumption of up to 50%.
4. Over 40,? 000 hours life expectancy.
5. Wide angle of deflection with even light distribution.
6. No start-up t ime,? no flickering,? no humming.
7. High efficiency constant current driver with built in overheat protection that remains stable
at a wide range of input voltages.
8. Independent LED circuit prevents complete blackout in case an LED fails.
9. Environmentally friendly,? mercury and lead free.
10. Causes no electromagnetic interference.
11. Easy installation.
12. With CE&RoHS and 3 years warranty.


LED panel light Applications:

Shopping arcade, hotel, office, factory, school, hospital, the subway, airport, etc

Competitive Advantage:

1.50% energy saving same watts compare with CFL traditional lights .
2.No glare , no UV , no pollution . Friendly to environment , healthful for man
3.low luminous decay . 3% luminous decay After 2000hrs
4. Wide range voltage 85-265VAC
?

LED Panel Light Installation

1.Please note the power wiring of positive and negative when installation power wiring (positive with word)
2.Connect into the panel lamp terminals power wire needs to tighten with the screw
3.To avoid danger, pls cut off power supply before connecting wiring.4.Lock the screw, pls not use


Embedded installation of led panel light????

1.Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , pls do not force squeezing or through the ceiling
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds


?

Suspension installation of led panel light??

1.Pls put a soft mat on the floor before Installing corner fixing parts , lest scratches or damaged panel
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1.The first open four φ5mm holes on the ceiling
2.Make the glue plug put into open good holes
3.Screw through fixed cap, locked in plug hole
