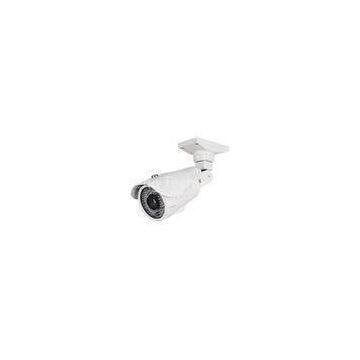

250mA Color CCD Auto AGC 1 3 sony ccd 480tvl Bullet IR Cameras with 3.6mm Board Lens
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
48dB 540TVL 500mA varifocus 50m IR distance waterproof bullet camera with all-in-one brack
-
COLOR / Black & White / EXT Day, Night, Privacy 560 TVL CCD IR Bullet Cameras / Camera
-
Varifocal Lens COLOR / Black & White / EXT Day & Night, Privacy IR bullet Cameras / Camera
-
STILL / Flip / Mirror / Sharpness / Digital Zoom Super HAD CCD IR Bullet Cameras / Camera
-
Built-in OSD DNR / Mirror Gain Control IR SMART LED Waterproof IR Bullet Cameras / Camera
-
3D DNR, Sens Up, BLC, D WDR, HLM Varifocal Len 600 TVL Sony CCD IR Bullet Cameras / Camera
Product Details
| Brand Name | Pengcheng | Place of Origin | China | |
| Model Number | TC-3063 |
Product Description
Certification:CE、ROHS、 FCC,UL ,SGS
250mA Color CCD Auto AGC 1 3 sony ccd 480tvl Bullet IR Cameras with 3.6mm Board Lens
Color CCD/Waterproof IR
3.6mm Lens
24PCS IR LEDs,20m IR Distance
All purpose cable hidden bracket
TC-3063 Waterproof Infrared CCD CAMERA Technical Specification
3.6mm Lens
24PCS IR LEDs,20m IR Distance
All purpose cable hidden bracket
TC-3063 Waterproof Infrared CCD CAMERA Technical Specification
|
Model
|
TC-3063P | TC-3063H | TC-3063N |
|
Color/BW |
Color
|
||
|
System of Signal |
PAL/NTSC | ||
|
Sensor |
1/4” SHARP CCD | 1/3” SONY CCD | 1/3” SHARP CCD |
|
Horizontal Resolution |
420TVL | 420TVL | 480TVL |
|
Picture element |
PAL: 582 X500?? NTSC: 510X492 | PAL: 752*582?? NTSC: 768*494 | |
|
Minimum Illumination |
0 Lux(when IR ON) | ||
|
Synchronizing System |
Internal | ||
|
S/N Ratio |
>48dB | ||
|
Auto Electronic shutter |
1/50~1/100,000SEC ON/OFF | ||
|
AGC |
Auto | ||
|
BLC |
Auto | ||
|
Video output |
1.0Vp-p 75 ohm BNC | ||
|
Lens |
Board Lens 3.6mm | ||
|
IR Range |
24 PCS 5MM IR LEDs, 20 Meter IR distance |
||
|
Power supply |
DC12V | ||
|
Power consumption |
250mA | ||
|
Operation temperature |
-10~+50 Celsius |
