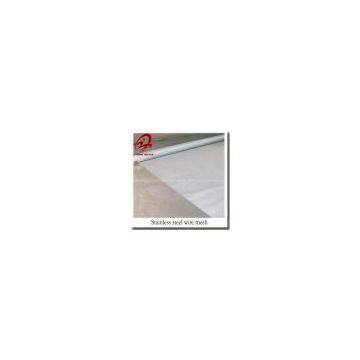

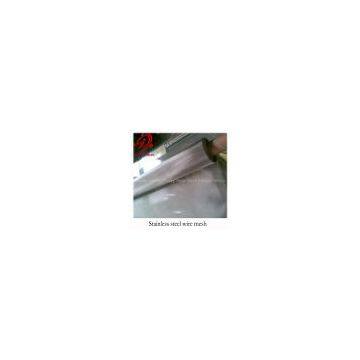

Woven Stainless Steel Wire Mesh Cloth(factory Price)

Woven Stainless Steel Wire Mesh Cloth

1)Woven Stainless Steel Wire Mesh Cloth  can be divided into Stainless Steel Wire Mesh Square Opening and Stainless Steel Wire Mesh Dutch Weave according to weaving types, while Square Opening Stainless Steel Wire Mesh can be further divided into square wire mesh plain weave and square wire mesh twill weave.

Stainless Steel Wire Mesh Square Opening usually refers to woven stainless steel wire mesh, in Plain Weave or Twill Weave patterns.

2)Standard mesh counts per inch for stainless steel wire mesh with square opening:

2mesh/3mesh/4mesh/7mesh/10mesh/12mesh/16mesh /18mesh/20mesh/24mesh/
30mesh/35mesh/40mesh/50mesh/60mesh/70mesh/80mesh/90mesh/100mesh/
120mesh/150mesh /180mesh/200mesh/250mesh/300mesh/325mesh/ 350mesh/
400mesh/450mesh/500mesh

3)Technical Note:

Standard width of stainless steel wire mesh: 1m or 48"; stainless steel wire mesh with extra roll width of 4m also available.

Standard roll length of stainless steel wire mesh: 30m or 100'.

4)Plain Weave Description:
Plain Weave is a kind of commonly used weaving method.The warp wire that establish the length of the wire mesh and the weft wire, parallel to the width, cross one another, alternating one on the top and one under, forming a 90° angle between each other.
Solid woven wire mesh may have a square or rectangular opening.

Plain Woven Wire Mesh Clothes are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

Wire Materials:
Stainless Steel Wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Special Steel: Cromax, Incoloy, Alloy Ni-Cr, Inconel, Nichel, Monel, Titanium, Duplex.
Woven wire mesh is also available with carbon steel, low carbon steel, galvanized steel, brass, bronze, copper, aluminum alloy, etc.

Tabby Plain Weave Wire Mesh Product Features:
Stainless steel wire mesh plain woven offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high open surface area and good fireproof property.

Technical Note:
1, Standard roll width of stainless steel wire mesh: 1m or 48"
2, Standard roll length of stainless steel wire mesh: 30m or 100'
3, Material of stainless steel wire mesh: AISI 304 or 316
Stainless steel wire mesh plain woven sizes:
2mesh/3mesh/4mesh/5mesh/6mesh/8mesh/10mesh/12mesh/14mesh/16mesh/
18mesh/20mesh/26mesh/30mesh/40mesh/50mesh/60mesh/70mesh/80mesh/ 90mesh/100mesh/120mesh/150mesh/160mesh/180mesh/200mesh/250mesh/ 300mesh/325mesh/350mesh/400mesh/

5)Twill Weave Description:

In the Twilled Woven Wire Mesh, the wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.
Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

Wire Materials:
Stainless Steel Wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Twilled woven wire mesh in carbon steel, galvanized steel, aluminum alloy, brass, phosphor bronze and other metals is also supplied.

6)Dutch Twilled Woven Wire Mesh
In Dutch Twilled Weave Wire Mesh, the wire of the weft and the warp intercross two above, with a larger weft wire than the warp.
This kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire, reducing the mesh opening.
Dutch Twilled Weave Wire Clothes are basic components in the production of filters.
It is supplied in stainless steel, steel alloy, aluminum alloy, carbon steel, brass, copper, phosphor bronze and other metals.
Product Features:

Dutch Twill Weave Wire Mesh Filter Cloth offers high filtering capability at high pressure, great dimensional strength and stability, good fireproof property and the stainless steel wire mesh offers excellent anticorrosion.

7)Reverse Dutch Woven Filter Cloth
Reverse Dutch Weaving is obtained by reversing the wire cloth position, with a remarkable number of subtle warp wires closed as much as possible and more spaced weft wires with a higher diameter. The apparent difference between Reverse Plain woven wire mesh and standard Dutch Plain woven wire mesh lies in thicker warp wires and less weft wires.

Reverse Dutch Woven Filter Wire Cloth is the basic filter materials for pharmacy, food, medicine, chemical and other industries.

Wire Materials:
Stainless Steel Wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Woven wire mesh filter cloth of special steel alloy, galvanized steel, carbon steel, brass wire , aluminum alloy, copper is also supplied.

Dutch Woven Stainless Steel Wire Mesh Filter Cloth Features:
High filtering capacity at high pressure, great dimensional strength and stability, anticorrosion and fireproof property.

Dutch Wire Cloth
Dutch woven wire cloth is popularly used as filter cloth with micron openings. Stainless steel Dutch woven wire cloth normally goes from 24/110mesh to 325/2300mesh.

8)We also supply Five Heddle Weave wire cloth.

Materials: Materials of Dutch Woven Wire Cloth is divided into Type 302, Type 304, Type 304 L, Type 316 and Type 316 L. Stainless Steel Dutch Woven Wire Cloth offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance. Dutch Woven Wire Cloth in brass, nickel, steel or other metal materials also available at request.

Use: Stainless Steel Dutch Woven Wire Cloth is utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.

Weaving Patterns of Dutch Wire Cloth can be divided Dutch Plain Weaving, Dutch Twill Weaving or Dutch Reverse Weaving.

Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

Five Heddle Weave: A limited sizes are available.
