- Main products: Wood Chipper Machine
Home > Products > Disc Wood Chipper > Horizontal 1600mm, 625 rpm, 545 * 383mm Rotor Speed Disc Wood Chipper BX1216

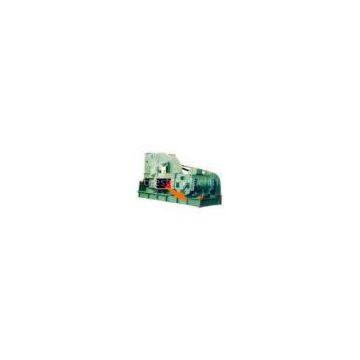

Horizontal 1600mm, 625 rpm, 545 * 383mm Rotor Speed Disc Wood Chipper BX1216
- T/T L/C D/P D/A
- 7 days
You May Like
-
2060mm Chip Length 500 rpm Horizontal Disc Wood Chipper With 584 * 560 mm BX1220
-
BX1112 Disc Wood Chipper With 1220 mm Knife Disc Diameter, 20 - 35 mm Chip Length
-
1600mm Knife Disc Diameter, 625 rpm Rotor Speed Disc Wood Chipper BX1216
-
Horizontal 20 - 35mm Chip Length Disc Wood Chipper With 584 * 560 mm BX1220
-
207 * 190mm, Disc Wood Chipper BX1710 For Wood-Based Panel Industries ISO9000, CE
-
630mm Knife Disc Diameter, 800 rpm Disc Wood Chipper BX116 For Paper Pulp
Product Details
| Brand Name | Xu Brand | Place of Origin | China | |
| Model Number | BX1216 |
Product Description
Certification:ISO9000,CE
Horizontal 1600mm, 625 rpm, 545 * 383mm Rotor Speed Disc Wood Chipper BX1216
This series of machine are suitable for wood chips preparation in the paper pulp,and wood-based panel industries,as well as the chip production bases,by which,logs and small wood are cut into high quality with even length and uniform chip thickness,it is also suitable for the chipping of branches and twigs,planks,etc.
The chipper consist of frame,knife disc,feed and discharge spout,case and electrical control system,etc.
The chips length is adjustable in accordance with the requirement of the paper pulp,particle board and fibre-board industries.
Compact in structure,easy to operate and maintenance,high capacity,excellent quality of chips,as well as low energy consumption,all these features contribute to the fact that it is an ideal equment for chip production for various applications.
Applications:
Disc chipper are suitable for wood chips preparation in the paper pulp,and wood-based panel industries,as well as the chip production bases
Specifications:
|
Specifications/Model |
BX1216 |
|
Knife disc diameter? ???????mm |
1600 |
|
Rotor Speed???? rpm |
625 |
|
Number of rotor knives( pieces) |
6 |
|
Chip length?? ???????????mm |
20-35 |
|
? Type of feeding ????????? |
Horizontal |
|
Feed opening dimension? ??mm |
545×383 |
|
Capacity?????????? ??????m3/h |
25-45 |
|
Main drive motor power??? kw |
220-250 |
|
Max.Log dimension???????? mm |
Φ300 |
|
? Type of discharge?????? |
Upper |
|
Total Weight??????????????? kg |
8732 |
|
Overall dimensions? ( L×W×H) |
3756×1855×2093 |
|
Remarks |
Right feeding |
