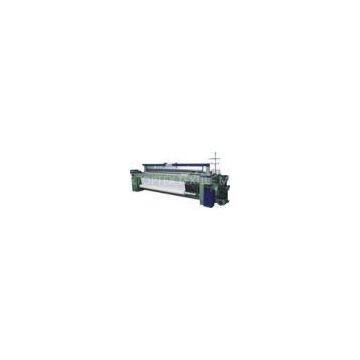

Air Jet Loom Machine With Photoelectric Weft Feeler, Textile Weaving Equipment

Reed width(cm)

190,230,280,340

Norminal reed width regulating rang(cm)

0-60

Design rotating speed(r/min)

400-800

Yarn weaving range(d)

6-100 short fiber, 70-500Dlong silk

Weaving weight(g/m2)

30-300

Weft density range(pc/inch)

13-153

Weft beating-up mechanism

Double-side connection 4-connecting rob? weft insertion beating-up(below 230cm), Double-side connection 6-connecting rob? weft insertion beating-up( up 250cm),

Weft insertion mechanism

Main nozzle+swing nozzle+abnormity lock+extending nozzle

Weft stop

Photoelectric weft feeler

Left-off stop

Electric touch rod six tier

Warp left-off? device

electronic type warp left-off mechanical(optional)

rolling

Mechanical ,electronic(optional)

Diameter of loom-beam disk sheet (mm)

800

Diameter of cloth-beam disk sheet (mm)

500

Shedding? mode

Crank shedding, cam? shedding(positive,passitive)

dobby shedding(electronic,mechanical)

power

190,230cm 2.8kw

Weavingpower:4.5kw

280cm 3.7kw

5.5kw

340cm 4.5kw

6.5kw
