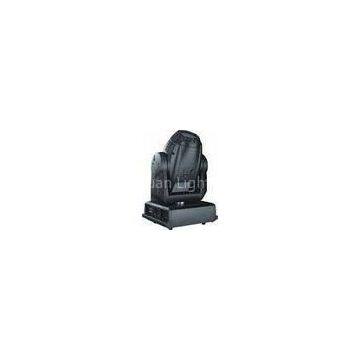

1500W 18/16 control channel channels 1200W Stage mini moving heads lighting

1500W 18/16 control channel channels 1200W Stage mini moving heads lighting

Voltage: AC110V/220V±10%, 50Hz-60Hz

Power: 1500W

Control channel: 18/16 control channel channels

Light source: OSRAM HTI1200W/S lamp

Function:

1)Two color wheels with seven colors plus white, has rainbow effect, 128 colorschanges are available.

2)One rotating gobo wheel, one fixed gobo wheel

3)Light iris with linear adjustment

4)Integration design of strobe, dimmer, and shutter, strobe as 1-12 flashes per second

5)Transformable fogbow effect, CTC color temperature correction function system

6)Cylindrical mirror, bevel mirror, 4-facet prism effect, Prism can be superimposed and produce the five-facet prism effect. The rotating speed and direction of the prism can be adjusted

7)540° Pan with 16 bit resolution, 540°Tilt with 16 bit resolution, smooth and steady-going

8)Automatic Pan and Tilt repositioning system if accidentally knocked out of place and with correct positioning function

9)Good heat dispersion system

10)Superheat protection (inside with thermostat), electronic trigger

11)DMX512 international signal, communication photo electricity couple in and close off technology

12)PFC power factor compensation

13)Up to IP20 degree of protection

14)Electric focusing 11o-24 o, zoom lens with linear magnification and reduction

15)DMX512 signal receiving pilot lamp

Size: 540 x 410 x 740mm

Weight: 54kg

DMX CHANNELS:

CH1: Dimmer
CH2: Strobe
CH3: Color Wheel One
CH4: Color Wheel Two
CH5: Gobo Wheel One
CH6: Gobo One Rotation
CH7: Gobo Wheel Two
CH8: Focus
CH9: Pan
CH10: Tilt
CH11: Pan Fine
CH12: Tilt Fine
CH13: Pan/Tilt Speed
CH14: Prism
CH15: Prism Rotation
CH16: Iris
CH17: Zoom
CH18: Reset
