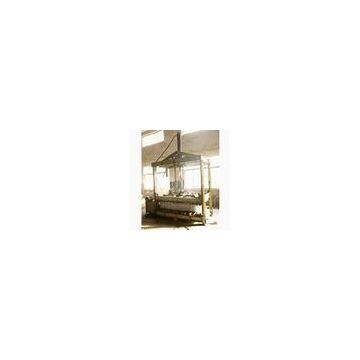

Gabion Box Packing Machine, Gabion Mesh Packing Machines 2340mm*1050mm*2350mm

Descrition:

Gabion?Box?Packing?Machine

Gabion?Box?Packing?Machinery?is?dedicated?for?gabion?mesh\'s?packing,?press?the?gabion?to?smaller?CBM.?

The?machine?has?an?independent?power?sector?and?electrical?systems,?using?the?button?to?centralized?

control.?The?machine?consists?of?rack,?pressure?plate,?oil?cylinder,?oil?pump?unit,?tank,?electrical?box?and?so?

on.?It?can?produce?as?your?requirement.

Operating?principle

When?the?machine?work,?oil?pump?unit?provide?the?pressure?oil?via?safety?valve?limit?the?pressure?and?enter?

manual?reversing?valve,?when?manual?reversing?valve?work?on?the?left,?pressure?oil?enter?on?the?oil?cylinder?

via?piston,?piston?rod?pull?pressure?plate?run?downwards,?the?down?oil?of?the?oil?cylinder?stream?back?to?tank?

via?reversing?valve.?When?Manual?reversing?valve?work?in?the?middle,?the?up?and?down?oil?of?oil?cylinder?will?

be?closed?by?reversing?valve,?pressure?plate?can?keep?pressure?and?stay?on?anywhere,?oil?cylinder?

discharge?loads?via?reversing?valve,?when?reversing?valve?work?on?the?right,?pressure?oil?enter?down?part?of?

oil?cylinder?pull?pressure?plate?run?upwards,?the?up?part?oil?of?the?oil?cylinder?flow?back?to?tank?via?reversing?

valve.

Above?of?the?oil?cylinder?arranges?the?middle?device,?can?decrease?the?pressure?and?run?to?the?up?limit.

Specifications:

1.?Overall?size:?2340mmx1050mmx2350mm
2.?Power:?5.5kw
3.?Max?Packing?Size:?2mx1mx1m?(packing?size?also?can?produce?as?your?requirements)
4.?Work?Pressure:?380V
5.?Weight:?3000kgs

Competitive?Advantage:

1.?All?the?parts?of?netting?sheet?cutting?machine?are?processed?by?our?own?factory,?no?parts?were?send?to?

outside?to?process,?so?the?quality?can?be?ensured.

2.?We?can?provide?12months?guarantee?for?all?the?equipments,?and?if?customer?need,?we?will?arrange?our?

technician?to?help?install?the?machines?in?your?country,?and?also?could?supply?all?the?spare?parts?with?cost?

price?if?customer?need.
