PSTN and GSM Alarm System with touch keypad and wireless doorbell CX-GSM4

Brand Name	Pengyu		Place of Origin	China

Delivery Time:Within 3-7 working days
Certification:CCC, CE, RoHS, UL
GSM Alarm system＞Dual network PSTN and GSM Alarm System with touch keypad and wireless doorbell? Model: CX-GSM4

1.Touch Keypad, LCD display
2.Wireless\"Ding Dong\"doorbell
3.Dual Network:GSM/PSTN auto switch

Dual network PSTN and GSM Alarm System with touch keypad and wireless doorbell＞Outstanding Features:

?1.With Touch Keypad.
?2.Door Chime function:Check doorwindow status automatically (This is when the system is disarmed only, ???if a door is opened, it will sound fast \"bi bi bi\").
?3.Ready to arm. Suppose you arm the system with a door/window open.No sense of protection.?If a?door/window was left open and user try to arm the system, system will sound a long beep(1 second) and display? “SYSTEM NOT READY” for 3 seconds, Then the next screen will show:?? ARM ANYWAY?
?4.Wireless “Ding dong” doorbell.

Dual network PSTN and GSM Alarm System with touch keypad and wireless doorbell＞?Extended Functions:

1.8 wired zones.
2.Open and closed status(of door and window) mornitoring and alert.
3.Wireless “Ding dong” doorbell.
4. Check doorwindow status automatically (This is when the system is disarmed only, if a door is opened, it will sound fast “bi bi bi”).

Dual network PSTN and GSM Alarm System with touch keypad and wireless doorbell＞Basic Functions:

1.Blue or Green LCD looks nice and upgraded .More comfortable operation with touch keypad. Concisely displays Date, Day of the week, Time, and current Armed Status.
2. The screen can show the language: English, Chinese, German, Russian, French, Japanese... ?Trad-Chinese and more to meet different market needs.
3. 2 /4 Band GSM/PSTN dual net-work. Support? phone call alarm and SMS alarm, ? automatically switch to GSM dailing when telephone line is cut.
4. 29 wireless zones (Each zone supports up to 4 sensors) + 2 dedicated zones for remote (Each zone supports up to 4 remotes or wireless keypad). 8 wired zones (each zone can be separately programmed, armed and disarmed) can be extended.
5. Upto 5 groups of telephone numbers can be pre-stored and then dial in sequence when alarming, each number can be set as phone call alarm or SMS alarm according to actual needs.
6. Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call.
7. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed via SMS. It will automatically swift to GSM line if landline cut.
8. Non-volatile chip, information stored automatically when off power.
9. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
10.Built-in Li-Ion backup batter, available in ACDC. System self-check, alert of phone line disconnection, low backup battery power and no external power.
11. 5-ways of arm/disarm: SMS, remote controller, built-in keypad, wireless keypad (optional device), phone call(PSTN alarm don’t support SMS).
12. One-key arm function. Learning sensors to alarm host, very easy operation.
13. Supports CID uploading to CMS(Center monitoring Station), can user our GSM CID connector to have this function.
14. “Black Box” date record function. Can store up to 100 alarm event information and 100 arm/disarm history.
15.Wireless or wired siren are optional for louder alarming sound.
16.More functions can be realized with more optional accessories(Note: consultation in advance is necessary)

Dual network PSTN and GSM Alarm System with touch keypad and wireless doorbell＞Specifications/Technical Parameters:

1. Power supply: AC=110~240V, DC=9~15V 1A
2. Static current: ≤50mA
3. Alarm current: ≤500mA
4. Working condition: Temperature: -10oC ~ 50oC Humidity: <80%
5. Wireless frequency: 315Mhz/433Mhz/868Mhz
6. Product dimension (Host): 150*107*26(mm)
7. Supports wireless sensors maximum at 116 purchase
8. Supports Remote maximum at 8 purchase
9. Back-up battery: Li-ion battery, 3.7V/1200MA
10. Standby: around 16 hours, Full charging time: 12 hours
11.GSM Frequency: Dual-Band(900/1800MHZ), Quad-Band(850/900/1800/1900HZ)
12.GSM emitting power:2W

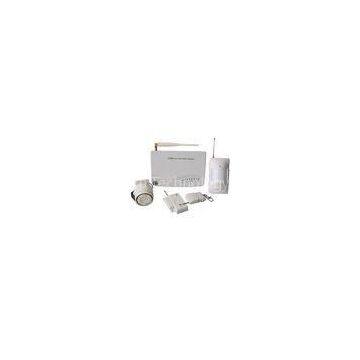

Dual network PSTN and GSM Alarm System with touch keypad and wireless doorbell＞Accessories in standard package:

1. alarm host *1pc
2. wireless wide-range PIR detector *1pc
3. wireless door magnet *1pc
4. wireless indoor siren *1pc
5. remote control/key chain * 2pcs
6. power adaptor *1pc

?Dual network?PSTN and GSM Alarm System with touch keypad and wireless doorbell＞Optional Accessories:

1.Gas alarm
2.Smoke alarm
3.Wireless out door siren
4.Wireless keypad
5.Wireless curtain PIR sensor
6.Wireless intell
