Home > Products > Industrial Dehumidifier > Air Refrigeration Industrial Dehumidifier, Custom-built Desiccant Rotor Dehumidifiers

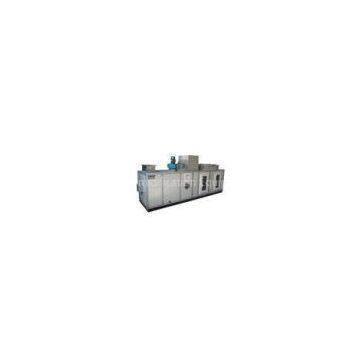

Air Refrigeration Industrial Dehumidifier, Custom-built Desiccant Rotor Dehumidifiers
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized Fully Automatic Industrial Dehumidifier, Dehumidification Equipment
-
Industrial Air Dehumidifier Equipment, Customized Large Dehumidification Machine
-
Pharmaceutical Industrial Dehumidifier, Refrigeration Desiccant Rotor Dehumidifiers
-
High Efficiency Industrial Dehumidifier, 50 Kg/h Multifunctional Desiccant Dehumidifiers
-
High Capacity Industrial Rotor Dehumidifier, 35 Kg/h Air Dryer Dehumidification Machine
-
Industrial Air Dehumidifier Equipment, 15.8 Kg/h Heavy Duty Desiccant Dehumidifiers
Product Details
| Brand Name | Fuda | Place of Origin | China | |
| Model Number | ZCB-5000 |
Product Description
Certification:ISO9001:2008
Air Refrigeration Industrial Dehumidifier, Custom-built Desiccant Rotor Dehumidifiers
Supply Air Parameter : T≤18℃ RH≤28%
General Description:
ZCB Series Industrial Custom-built Desiccant Rotor Dehumidifiers remove humidity using both refrigeration and a desiccant rotor, so it?can both control the humidity and temperature of the air independently in one?packaged unit.?
Operating Principles:
Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.
Applications:
War Industry, Scientific Research, Electric Power Transportation Lithium Battery Industry, Biotechnology Pharmaceutical Industry Chemical, Daily Chemical Industry, Food Beverage Industry Safety Glazing Material Industry, Tyre and Rubber Industry Medical Instrument, Vegetables Frozen, Precise Instrument Wood Goods, Shipbuilding Painting Industry, Kinds of StorageSpecifications:
|
Main Parameters |
|
|
Model |
ZCB—5000 |
|
Total Process Airflow |
5000m3/h |
|
Fresh Airflow |
500 m3/h |
|
Recirculated Airflow |
4500 m3/h |
|
Rotor Regeneration Airflow |
1660m3/h |
|
Parameters of Output Air |
T≤18℃ RH≤28% |
|
Regeneration Power |
48kw |
|
The Power of Regeneration Fan |
1.1kw |
|
The Power of Blower |
5.5kw |
|
The Power of Driving Motor |
0.1kw |
|
Installed Power |
54.7kw |
|
Cooling Load |
42kw |
|
Power Supply |
3P/380V/50HZ |
Competitive Advantage:
Sweden Proflute silicon gel wheel? A totally self contained unit PLC automatic control system, human-machine interface Aluminum alloy frame, anti-cold bridge Body modularization design, foam injected double wall casing Stainless steel drain pan and bottom boards Process and reactivation air flow sectors are insulated Electric or steam heating or convert type can be available All operation parameters?can be on-line observed,?ensuring operation?reliability High temperature safety thermostat cutout Electrical interlocking of fan motors, heaters and rotor driving We?can also provide the technical design and suitable equipment for dehumidification according to your requirements with process airflow from 300m3/h to 60000m3/h.Contact Us
- Hangzhou Fuda Dehumidification Equipment Co.,Ltd
- Contact nameConnie Chen Chat Now
- Phone86-571-86899396
- Address50 XinYe South Road,Hangzhou Economic&Technological Development Area, Wenzhou, Zhejiang
