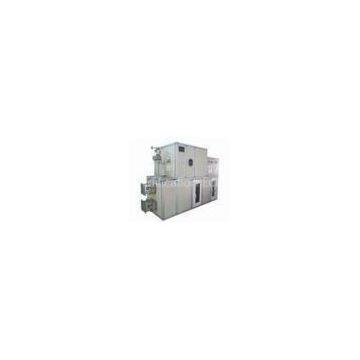

Industrial Refrigeration Dehumidifiers, High Efficiency Air Dryer Dehumidifier ZCB-1500

Brand Name	Fuda		Place of Origin	China
Model Number	ZCB-1500

Delivery Time:45days
Certification:ISO9001:2008

Industrial Refrigeration Dehumidifiers, High Efficiency Air Dryer Dehumidifier ZCB-1500

Supply Air Parameter : T=22-24℃ RH=30%-40%

General Description:

ZCB Series High Efficiency Combined Air Dryer Dehumidifiers remove humidity using both refrigeration and a desiccant rotor, so it?can both control the humidity and temperature of the air independently in one?packaged unit.

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications:

War Industry, Scientific Research, Electric Power Transportation Lithium Battery Industry, Biotechnology Pharmaceutical Industry Chemical, Daily Chemical Industry, Food Beverage Industry Safety Glazing Material Industry, Tyre and Rubber Industry Medical Instrument, Vegetables Frozen, Precise Instrument Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Specifications:

Main Parameters
Model	ZCB—1500
Total Process Airflow	1500m3/h
Fresh Airflow	680 m3/h
Recirculated Airflow	820 m3/h
Rotor Regeneration Airflow	500m3/h
Parameters of Output Air	T=22-24℃ RH=30%-40%
Regeneration Power	12kw
The Power of Regeneration Fan	0.25kw
The Power of Blower	2.2kw
The Power of Driving Motor	0.04kw
Installed Power	14.49kw
Cooling Load	28.6kw
Power Supply	3P/380V/50HZ

Competitive Advantage:

Sweden Proflute silicon gel wheel? A totally self contained unit PLC automatic control system, human-machine interface Aluminum alloy frame, anti-cold bridge Body modularization design, foam injected double wall casing Stainless steel drain pan and bottom boards Process and reactivation air flow sectors are insulated Electric or steam heating or convert type can be available All operation parameters?can be on-line observed,?ensuring operation?reliability High temperature safety thermostat cutout Electrical interlocking of fan motors, heaters and rotor driving

We?can also provide the technical design and suitable equipment for dehumidification according to your requirements with process airflow from 300m3/h to 60000m3/h
