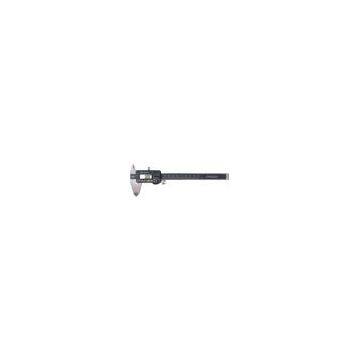

LCD 0-150mm 3 Key Digital Caliper Steel Shell Precision Measuring Tools

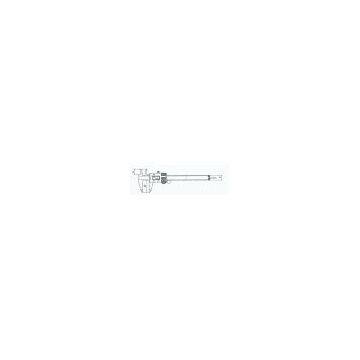

Range (mm/in)	Resolution (mm/in)	A(mm)	B(mm)	C(mm)	Accuracy (mm)
0-150/6"	0.01/0.0005"	16.5	40	16	±0.03
0-200/8"	0.01/0.0005"	20	50	16	±0.03
0-300/12"	0.01/0.0005"	20	60	17	±0.04



FEATURE:



Made of Stainless steel;
Have system: metric,inch;
for measuring to ID,O,Depth and Step.



Four way measurements (inside, outside, step and depth)



Made of carbon or stainless steel



LCD Display and plastic shell



Metric/inch system, auto-power-off, sliding on



With "graduation" at caliper body



With fastening screw.



Handy conversion chart at the back.



Linear capacitive measuring system.



Fractional inch /decimal inch conversion



Zero-seting at any position data output



Resolution: 0.01mm/ 0.0005 in.
Repeatability: 0.01mm/ 0.0005 in.
Accuracy: + 0.02 mm/ 0.001 in. (<100 mm), + 0.03 mm/ 0.001 in. (>100 150 mm)
Measuring range: 0150 mm/ 6 inch.
Maximum measurement speed: 1m/s .
Size: 240 x 80 x 12mm .
Package:Digital CALIPER X1 (not include box)
Battery life: 3 years under normal operation.



Color:sliver



withOUT Packing BOX



Vernier caliper applications:



A) to measure the work piece width



B) to measure the work piece overall diameter



C) to measure the work piece inside



1. We can supply all kinds of vernier calipers to satisfy clients' needs.
2. We are able to manufacture vernier calipers according to clients' drawings.
3. Our vernier calipers are acknowledged and very popular in domestic and overseas market.
4. We are willing to provide clients with our samples of vernier calipers if being requested.
5. Welcome to send detailed enquiries with our model number and your quantity of vernier calipers to us to begin our business

Model  No	Size(mm/in)	Range(mm/in)	Accuracy(mm/in)	QTY/CTN	N. W. kg	G. W. kg	MEAS(cm)	Packing
SK001	100	100	0.02	50	9	8	37x25x25	Plastic box
SK002	125	125	0.02	50	14	13	48x23x23	Plastic box
SK003	150	150	0.02	50	15	14	59x29x36	Plastic box
SK004	200	200	0.02	50	21	20	67x34x36	Plastic box
SK005	250	250	0.02	20	15	14	43X28X31	Plastic box
SK006	300	300	0.03	20	16	15	48X31X47	Plastic box
