Home > Products > PTFE Tube/Pipe > black filled PTFE tube(pipe)

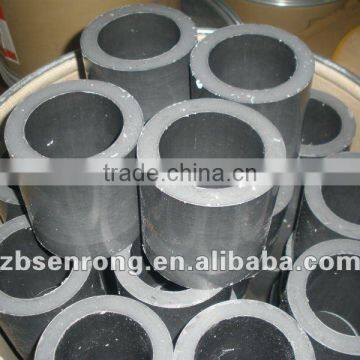

black filled PTFE tube(pipe)
- Qingdao Tianjin Shanghai Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | senrong | |
| Model Number | rgh433 | Material | Other, PTFE | |
| Specification | outer diameter from 20mm-500mm | Length | 100mm-1000mm | |
| Thickness | 3mm-30mm |
Product Description
black PTFE tube(pipe)
| Product No. | Filled compound and Content by wt | Tensile strength Mpa min | Utimate strength%min | Comprehensive strength Mpa min |
| 1 | 20% glass fiber | 10 | 120 | 16 |
| 2 | 20% glass fiber | 10 | 100 | 16 |
| 3 | 20%glassfiber 5%graphile | 10 | 120 | 16 |
| 4 | 60%Bronze | 10 | 80 | 20 |
| 5 | 15% carbon fiber | 11 | 130 | 16 |
| 6 | 24%Bronze 12%glass fiber 6%Graphite | 9 | 100 | 16 |
| 7 | 12%glass fiber 10% Polyikmide 5%graphite | 10 | 120 | 16.7 |
Application | Necessary properties |
|
Gaskets | Creep resistance, chemical resistance | No.1,No.2,No.3,No.5 |
Valve seat | Creep resistance, Low friction, chemical resistance | No.1,No.2,No.3,No.5 |
Packings | Creep resistance, Low friction, Low wear, Chemical resistance, stiffness | No.1,No.3,No.5,No.7 |
Bearings | Low wear, Low friction, creep resistance | No.1,No.4,No.5,No.6 |
Bearing Pads | Creep resistance, Low friction, resistant to weathering | No.3 |
Piston | creep resistance, Low friction, chemical resistance stiffness | No.1,No.2,No.3,No.5 |
