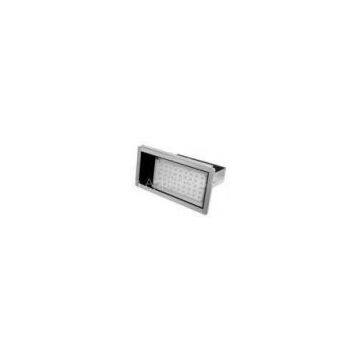

High efficiency 200W / AC85V - 265V / 60 - 100 LM/W / 50000 hours LED Tunnel Lights

High efficiency 200W / AC85V - 265V / 60 - 100 LM/W / 50000 hours LED Tunnel Lights

Led flood/tunnel light 930 Series Ceramic High power 200w
*Light source: 4 pc high power LED
*Led Luminous Efficiency: 60-100LM/W
*Input Voltage: AC85V ~ 265V
*Frequency Range: 50Hz ~ 60Hz
*IP Grade: IP65
*Working Life-span: 50000H
*Certificate: CE
*Light Distribution: symmetrical/rectangle
*Light Design: LED + Reflector secondary flaring

Technical Parameters for 200w 930 series led Tunnel light:
200W LED Tunnel lamp
Led Consumption: 185W
System Consumption: 212W
Total Harmonic Distortion: < 9 %
Power Factor: >0.95
Power Efficiency: >87%
LED Working Voltage:AC85-265V/50-60Hz
Lamp\'s Efficiency: >85 %

Average Illuminance
Height 6M 42 Lux
Height 8 M 25 Lux
Height 10 M 17 Lux

Illuminance Area
Height 6 M 20 MRound
Height 8 M 25 MRound
Height 10 M 32 MRound
Illuminance Uniformity > 0.5
Color Temperature:
WW 2700K ~ 3900K
PW 3900K ~ 6000K
CW 6000K ~ 7000K
Color Rendering Index:
WW Ra>68
PW, CW Ra>75

LED Junction Temperature: < 80
Working Temperature: -40 ~ +55
Storage Temperature: -25 ~ +65
Power line: 0.75mm2 three-core cable

Benificiary:
Long Life Span: +50, 000 hours
2 years warranty
Friendly envioremental
High quality with competitive price & excellent service
ODM OEM service offered

Features:
1, ?Using?high?power?ceramic?multi-chip?LED, ?High?quality?aluminum?body, ?patented?cooling?body?design, ?
anodizing?tensile?reflector, ?acrylic?light?source?enclosure.
2, ?The?unique?thermal?design?and?the?power?supply?box?is?a?perfect?combination,
reasonably?using?movement?of?air?from?all?directions, ?effectively?improving?heat?conduction, ?
thereby?reducing?the?lamp?body?temperature, ??so?that?LED?could?be?in?the?best?working?environment?in
order?to?ensure?light?and?power?supply?life.
