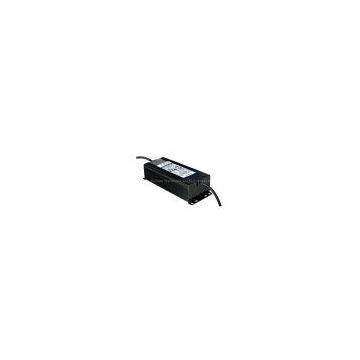

Waterproof LED driver 36V 2.5A for flood light FY3602500

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Fuyuang		Place of Origin	China
Model Number	FY3602500

Product Description

Waterproof LED driver 36V 2.5A for flood light FY3602500

Features:
Metal case
Universal AC input / Full Range
IP67 Waterproof
Protections:Short circuit/Over Voltage/Over current/Over Temp
Output Voltage and Constant current adjustable
100% full load burn-in test
With PFC Function
Colling by free air convection
High efficiency 91% Min
3 years Warranty

EMC Immunity: EN61547/ IEC 61000 LVD: EN61347, Class II IP67 UL1012,CAN/CSA C22.2 NO.107.1-01 PSE/J60950, J55022,J3000. FCC part 15 CB/IEC60950, CCC/GB4943, C-tick/N17653, V Eup class B EK KC/K60950,K00022,K00024 RoHS:EN2002/95-EC TUV GS/EN60950,EN60335,EN61558,EN62233. \"> UL60950,CSA C22.2,     PSE/J60950,J55022,J3000.
CE/EN55022,EN61000,           FCC part 15
CB/IEC60950, CCC/GB4943, C-tick/N17653,
V Eup class B
EK KC/K60950,K00022,K00024
RoHS:EN2002/95-EC
TUVGS/EN60950,EN60335,EN61558,EN62233.

Specifications:
Input	90~264VAC 47~63Hz
Power factor PF≥0.94/115VAC, PF≥0.91/230VAC
Efficiency: 91%
Leakage Current <0.75mA
Output	Voltage tolerance: 5%
Current tolerance: 5%
Output voltage and power, details please see bottom model list
Packing	Product Dimension	1797147mm
White Box	1.05KG/pc
MTBF	495.7Khrs min. MIL-HDBK-217F (25℃)
Safefy and EMC	Safety standards EMC Emission EMC Immunity
