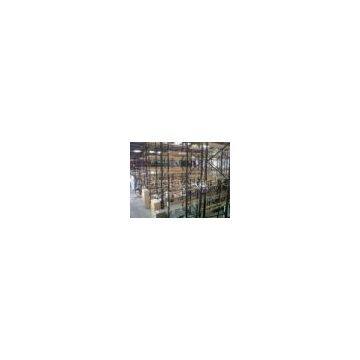

Q235B, Selective Warehouse Store Industrial Pallet Racking System with 2 Safety Pins

Material

Q235B

Use

Warehouse Store

Depth

800-1800mm

Length

1500-3900mm

Height

1800-12000mm

Thickness

1.0-2.5mm

Level

2-12 levels

Loading capacity

500-5000kg/level

Features

1. All racking shall be fixed onto the ground by means of Expansion bolts

2. Each beam is secured by 2 safety pins

3. Protector is recommended to mount in the junction of over two directions

4.Apperance is the Electro Static Dusting Spray

5.The layer can be steel plate , wood plate or steel pallet

Loading Capacity /layer

Usually from 500kg to 5000kg

Also can design according your requirement

Specification of rack

Length

From 1500mm to 3900mm

Depth

From 800mm to 1800mm

Height

From 1800mm to 12000mm

Note: Also can design and produce according to your special requirements

Upright specification

88*66*1.5mm

88*66*1.8mm

88*66*2.0mm

100*80*2.0mm

100*80*2.5mm

120*80*2.0mm

120*80*2.5mm

140*80*2.0mm

140*80*2.5mm

Beam Specification

88*40*1.5mm

108*40*1.5mm

125*45*1.5mm

145*50*1.5mm

165*50*1.5mm

165*50*2.0mm
