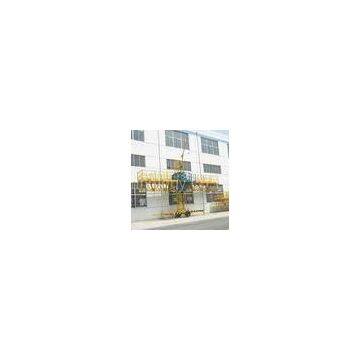

Steel Construction Single Mast Climbing Work Platform 10.5m Length 150m Height

Steel Construction Single Mast Climbing Work Platform 10.5m Length 150m Height

Description:

Single mast construction platform also called climbing type construction lifting platform, is a kind of aerial operation machinery which is driven by gear and rack, is lifted and guided by standard section. The aerial operation platform is mainly composed of the drive elements, under frame, standard section, tripod mounting deck, rail, wall-attaching rack, electric control system and other spare parts. And this machinery possesses the following features, like without prefabricated base, large hoisting capacity, high construction efficiency, large working area and safety and reliable.

It can lift the staffs and equipment to the required height and can allow one or more person to work on the platform. It is especially suitable for the aerial glass wall construction and external wall fixture and fitting, and it is also suitable for hanging ceiling and installing wire duct.

The construction lifting platform is in stable operation and its installation is convenient, and it can be safely operated. The construction lifting platform is prevailing in the building construction; to some extent, it can replace aerial operation hanging baskets and scaffolds.

Competitive Advantage:

Verified Information
This information is Verified by?Bureau Veritas and validity period is 2012/06/28 --- 2013/06/28
?

Applications:

Single mast construction platform can lift the staffs and equipment to the required height and can allow one or more person to work on the platform. It is especially suitable for the aerial glass wall construction and external wall fixture and fitting, and it is also suitable for hanging ceiling and installing wire duct.
The construction lifting platform is prevailing in the building construction; to some extent, it can replace aerial operation hanging baskets and scaffolds

Specifications:

single-mast working platform

1. rated loaded: 1000kgs

2. Max height: 150m

3. Max length of platform: 10.5m
4. Platform width: 1.25m
5. Rated speed: 8.5m/min
6. Power: 2*2.5kw
7. Max independent height: 8m
8. Standard section length: 1508mm
9. Ties distance: 3-9m
