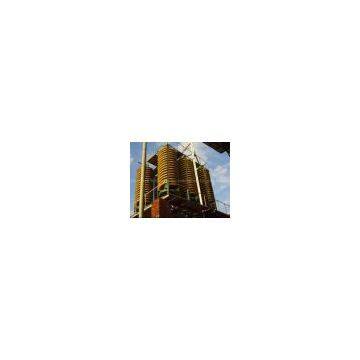

Spiral Chute
- 200 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | RP | Place of Origin | China | |
| Model Number | 5LL400 |
Product Description
Application
Spiral Chute is used to process iron, stannum, tungsten, tantalum, niobium, gold ore, colliery, monazite, rutile and zircon of the size between 0.3 and 0.02mm, metals and nonmetal minerals with enough proportion deviation.
Structure
Spiral Chute is made up of feeder, feed chute, spiral flute, bracket, intercepting slot, and supporting frame, etc.
Features
Simple structure, light weight, lower power consumption, easy operation, reliable operation, easy maintenance, smaller area, high capacity, and high separating efficiency.
Technical parameters
|
Model |
Helix No. |
Cycle |
Feed size (mm) |
Feed density (%) |
Capacity (t/h) |
Area (㎡) |
Height ( m) |
|
5LL400 |
1-2 |
4-5 |
0.02-2 |
30-50 |
0.5-0.2 |
0.25 |
1.5 |
|
5LL600 |
1-2 |
4-5 |
0.02-2 |
30-50 |
0.8-1.2 |
0.5 |
2.6 |
|
5LL900 |
2-3 |
4-5 |
0.03-3 |
30-50 |
2-3 |
1.2 |
3.2 |
|
5LL1200 |
2-4 |
4-5 |
0.03-3 |
30-50 |
4-6 |
2 |
5.23 |
|
5LL2000 |
2-4 |
3-5 |
0.04-4 |
20-45 |
15-40 |
5.7 |
6.6 |
