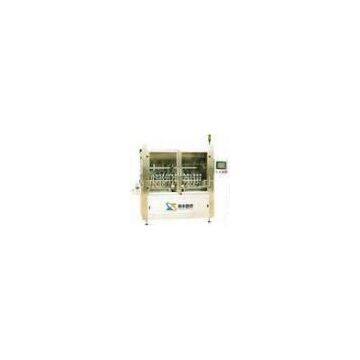

6 / 8 / 10 / 12 / 16 Heads Intelligent High Viscosity Piston Cream Filling Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
12 Heads High Viscosity Piston Filling Machine For Suspending Agent, Seed Coatings
-
35W 5 - 300kg Scale Fixed-quantity Piston Liquid Filling Machines With Counting Detection
-
8000b / h Automatic In-line Screw Cap Sealing Machine / Capper With Real-time Alarm
-
35 - 96mm Bottle Cap-tightening Screw Cap Machine For Aluminum Foil Sealed
-
Single-head Pneumatic Screw Cap Machine For Large Bucket-type Automatic Screw-cap Lid
-
Automatic In-line Type 6 Round Bottle Capping Machine With Traditional Control Panel
Product Details
| Brand Name | Jingfeng | Place of Origin | China | |
| Model Number | CCG1000-16 |
Product Description
6 / 8 / 10 / 12 / 16 Heads Intelligent High Viscosity Piston Cream Filling Machine
Description:
1. Specialized for high viscous liquid
2. Piston filling
3. In many industries
4. Accurate measurement: Adopt servo systems to control to ensure filling accuracy.
5. Variable-speed filling: During the filling process, when filling capacity approach to the target filling volume, can adopt Variable speed to realize slow speed filling, to prevent the liquid spill the jug to avoid pollution.
6. Convenient adjustment: It only needs to revise parameters in touch screen to change filling capacity specifications. All the filling heads change in place at once. In addition, slight adjustment of material dosage can be completed in touch screen.
Applications:
Applicable materials: Cream-type, suspending agent, seed coatings, High viscosity materials and other high viscosity materials.
Applicable industries: Food, pharmaceuticals, daily chemical, pesticide and other industries. ?
Specifications:
|
Filling?head |
16heads?(6/8/10/12/16?heads?can?be?selected) |
|
Suitable?bottle?diameter |
Φ40-100mm |
|
Bottle?height |
82-230mm |
|
Measure?precision |
±1%(within?200ml),±0.5%(200-1000ml) |
|
Volume |
80~1000ml |
|
Production?capacity |
≤6000bottle?/?hour |
|
Air?pressure |
0.6-0.8MPa |
|
Amount?of?Air-consuming |
200L/minute |
|
Power?supply |
220V,50Hz?or?others |
|
Total?Power |
2.5KW |
|
Weight |
1300KG |
|
Overall?Dimension |
2400×1200×2300(L×W×H)mm |
|
Fob?Shanghai |
USD23500/SET?(16heads) |
Competitive Advantage:
Technical performance:
The filling process is under control of PLC. All operation complete on the touching screen. It adopts the piston filling way. It suits for liquid .filling within chemical, daily chemical, food, cosmetic, medicine and pesticide etc, especially fitting for high-viscous materials filling.
It has simple structure, convenient operation. It is fairly ideal and economic filling equipment for high-viscous material filling.
