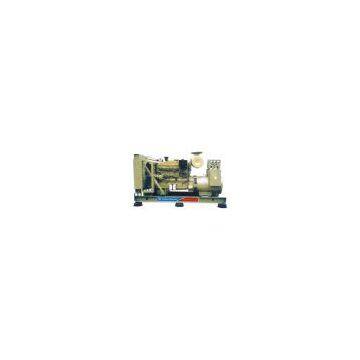

Sell Cummins Engine Diesel Generator Set

Model No.:
Product Origin:China
Brand Name:WANTONG
Price Terms:FOB
Payment Terms:T/T, L/C
Certification:CCC, ISO9001
Description:Engine: 1) Rated power: 48kW - 970kW, i.e. 60kva - 1212.5kva 2) Cooling method: closed water cooling 3) Starting method: electric start 4) Spin-on full flow lube oil filter 5) Residential silencer 6) Dry type air cleaner 7) Electric governor Alternator: 1) Rated output: 40, 48, 72, 100, 120, 150, 180, 200, 250, 280, 300, 360, 400, 440, 500, 600, 800kW 2) Rated voltage: 400/230V 3) Rated Frequency: 50/60Hz 4) Power factor: 0.8 5) Phase: 3-phase 4-wire 6) Connection: Y type connection 7) Rated speed: 1500rpm/1800rmp 8) Excitation: harmonic excitation or phase compound or brushless 9) Voltage regulation: automatic 10) 1.5% voltage regulation (max.) in static conditions 11) Protection class: IP 23 enclosure 12) Permissible overload of 10% for one hour in 12 hours of duration Control panel: 1) The generator control panel is manufactured locally by Cummins authorized manufacturer with 14/16 gauge arc sheet and powder coated for a weather-proof, long last finish 2) The panel is provided with: a) Standard engine instrumentation b) Voltmeter with selector switch c) Ammeter with selector switch d) Frequency meter e) Current transformers f) Instrument fuses duly wired and ferruled g) Mcb of suitable rating with overload and short circuit protection Others: 1) One dry and uncharged battery with battery leads 2) Fuel tank suitable for 12 hrs 3) Of continuous running provided with fuel level gauge, drain valve, air vent, inlet and outlet connections Packing: Plywood case or wooden case
