Home > Products > New product > Standard Panel Silent Type Diesel Generator(New Style)\

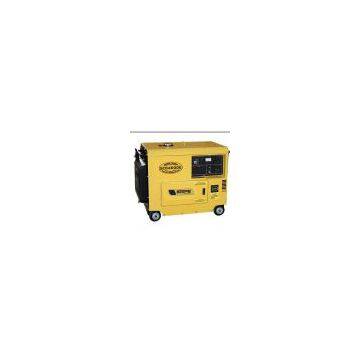

Standard Panel Silent Type Diesel Generator(New Style)\
US$ 507 - 507
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | SCD4500E |
Product Description
| Rated frequency(Hz) | 50 / 60 |
| Rated output(kva) | 2.6 / 2.8 |
| Max.output(kva) | 2.9 / 3.1 |
| Rated voltage(V) | 115/230 120/240 |
| Rated current(A) | 22.6/11.3 23.3/11.6 |
| Phase NO. | Single Phase |
| Power factor(cosΦ) | 1 |
| Insulation grade | B |
| Pole number | 2 |
| Excitation mode | Self-Excitation and constant voltage(AVR) |
| Panel type | General Panel |
| Voltage(V) | 115/230 120/240 |
| Receptacle | Two receptacles |
| DC12V output | Connection pole output |
| Engine model | SCD178F |
| Engine type | Single-cylinder,Vertical,four-stroke,direct injection |
| Bore x Stroke(mm) | 78x62 |
| Displacement | 296 |
| Rated power (Hp/rpm) | 5.0/3000 5.4/3600 |
| Compression ratio | 20:01 |
| Ignition system | Compression Ignition |
| cooling system | Air cooled |
| Lubrication system | Pressure splashed |
| Starting system | Electric Starter |
| Fuel type | 0#(summer) -10#(winter) -20#(chillness)diesel |
| Lube oil brand | CDgrade or SAE10W-30,15W-40 |
| Lube capacity(L) | 1.1 |
| Starting motor capacity(V-KW) | 12V / 0.8KW |
| Charging generator capacity (V-A) | 12V / 3A |
| Battery capacity(V-AH) | 12V / 36AH |
| Fuel consumption(g/kw.h) | 276.1 / 285.6 |
| Fuel tank capacity(L) | 15 |
| Continuous running time(hr) | 11 |
| Noise level db(A) at (7m) | 72 |
| Structure type | Silent |
| Dry weight(kg) | 140 |
| Gross weight(kg) | 154 |
| Overall dimension:LxWxH(mm) | 830x545x740 |
