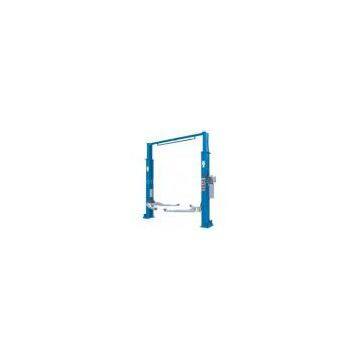

LM2MC-38-2(Two post lift)

Brand Name	Apo		Place of Origin	China
Model Number	LM2MC-38-2

Features:
STRONG
1,5mm "internatonal standard" column steel plates made in Shanghai;
2,8mm brace arm and 6mm internal sliding column, never deform;
3,Wearable, Anti-High temperature, high strength oiliness macromolecule nylon slide block;
4,Require no less than 150mm cement on the ground, at least C25
SAFETY
5,Double safe antiskid device, from column ladder safe to close protection by dydraulic pressure, ensure double safe stay for vehicle;
6,Endure max 5 ton destructive testing, fulfill 4 ton actual working conditions;
7,Chain style pulling device, make the security parameter up to 5 times;
8,Equipped upper beam, enhance the lifting capacity;
9,Equipped emergency limit switch to ensure the lifting height safely.
QUALITY
10,Total mold tooling technology, to ensure the conformity of both many  a holes and welding places;
11,Digital control raw materials processing center ensure the discrepancies at 1% stage & product consistency;
12,Optional revolving support leg and connected sleeve supporting;
13,Gum rubber support leg pad, the endurability 3 times higher than the common materials.
POWER
14,Double cylinder dynamic hoist drive device, capacity is more than 4 ton;
15,Aluminum pump system;
16,Mechanical control hydraulic pressure configuration, simple, endurable and reliable.

Technical Data:
Model:             LM2MC-38-2
Structure           Clear floor
Capacity(kg)        4000
Lift height(mm)     1800
Rise time(s)         52
Drop time(s)         22
Power of motor(kw)   2.2
Power supply(v)      380/220
Machine Height(mm)   3601
Machine Width(mm)    3254
Frame Width(mm)      3427
