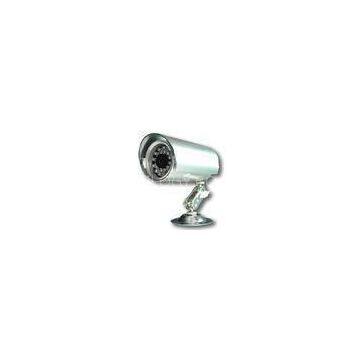

CCTV 600tvl day and night security CCD + Nextchip 2040 DSP cameras 3.6mm MTV lens

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BOSCOM		Place of Origin	China
Model Number	BS-N660D

Delivery Time:5 DAYS
Certification:CE ROHS

CCTV 600tvl day and night security CCD + Nextchip 2040 DSP cameras 3.6mm MTV lens

Description:

* 1/3 SONY 673 DSP + Nextchip 2040 DSP 600TVL high resolution

* 0.3 LUX /color illumination, 0 LUX IR ON

* 24 X D5 max power 860Nm IR LED, 20 meters IR distance

* 60# full metal casing, IP66 waterproof level

* Digital wide dynamic range function

* 3.6mm MTV lens, 6/8/12/16mm optional

* Wire control OSD function available(optional)

* Special waterproof bracket included

* 9-18V wide range power input

* Double glass, anti-fog design

Specifications:

Model	BS-N660D
Filter	Double Layers Crystal
Sensor	1/3″ Sony 673 CCD + Nextchip 2040 DSP
Signal	PAL	NTSC
Pixels	960(H)×596(V) 570K	968(H)×496(V)? 480K
Line	600TV
Illumination	0Lux / IR ON
Lens	f= 3.6 / 6 / 8 /12 /16 mm Lens Optional
IR LED	24pcs Φ5mm High Power IR LED
IR Distance	20Meter
Vertical	50Hz	60Hz
Horizontal	15.625KHz	15.734KHz
Clock	28.375MHz	28.636MHz
Scanning	2:1 Interlace
S.N.R	≥50dB
E.S	1/50-1/100,000s	1/60-1/100,000s
W.B	Auto Tracking
B.L.C	ON
A.G.C	ON
Gamma	0.45
Video Output	1Vp-p, 75Ω
IP Rating	IP66
Bracket	waterproof Especial Bracket
Power	DC/9-18V
Dimension	181210cm
Volume Weight	0.5kg
