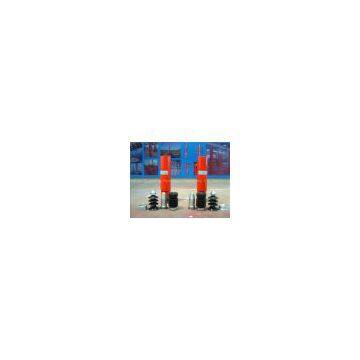

multiple stage cementing collar
- 200 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | QX | Place of Origin | China | |
| Model Number | 7\" |
Product Description
Use:
Hydraulic Stage Cementer features inner closing structure, opening through pressure
difference. The closing plug drives the closing sleeve down and then shut circulation
ports.
Features:
1. Opening pressure can be adjusted and it is not subjective to hole angle.
2. The pressure-relief design prevents fluid trapping and compression during the closing phase of the tool's operation.
3. The I.D of upper/lower sub is the same as that of casing, but smaller than that of closing sleeve, which can minimize chances of damages to the closing sleeve.
4. The inner seats are made of an easily drillable butyronitrile rubber / aluminum material. Both the opening and closing seats lock against rotation for easy drill-out.
Technical Parameters:
|
Specifications, (in) |
5 1/2" |
7" |
9 5/8" |
13 3/8" |
|
Max O.D., mm |
Φ170 |
Φ208 |
Φ283 |
Φ381 |
|
Drill-out I.D., mm |
Φ122 |
Φ155 |
Φ220 |
Φ315 |
|
Overall Length, mm |
1082 |
1182 |
1222 |
1280 |
|
Rated Load, t |
140 |
170 |
210 |
300 |
|
Sealing capacity, MPa |
25 |
25 |
25 |
25 |
|
Opening Pressure, MPa |
13 |
13 |
13 |
14 |
|
Closing Pressure, MPa |
5 |
5 |
5 |
5 |
|
Lower Sliding Sleeve I.D., mm |
Φ85 |
Φ115 |
Φ176 |
Φ203 |
|
Upper Sliding Sleeve I.D., mm |
Φ95 |
Φ125 |
Φ197 |
Φ285 |
