Home > Products > Cob Led Module > 4250 - 4750 LM 2080mA Aluminum Alloy 50W 24V High Power Cob Led Modules

4250 - 4750 LM 2080mA Aluminum Alloy 50W 24V High Power Cob Led Modules

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JD		Place of Origin	China
Model Number	JD-R040112-24V

Product Description

Delivery Time:3-5working days after received deposit.
Certification:CCC, CE, RoHS

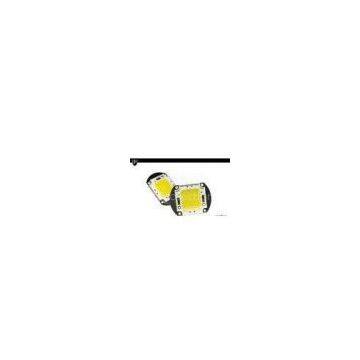

4250 - 4750 LM 2080mA Aluminum Alloy 50W 24V High Power Cob Led Modules

Flat COB LED Module

1. LED chip is fixed on aluminum layer of aluminum base PCB. The heat from chip can be spread out through aluminum layer rapidly.

2. Low lighting decay, decay less than 3% after 1000 hours.

3. Equable and soft irradiancy, no glaring and eye Protection.

4. Good reliability, no dead bulb and no motting.

5. LED full lighting module can be combined into different LED lights easily.

6. Highly Color-rendering index and lighting effect. Safty, Environment friendly. ? ?

Applications:

Round?full?lighting?module?is?widely?used?for?LED?bulb, ?LED?cup?, LED?spot?light, ?LED?down?light?and?so?on.

Specifications:

Category	Name	Data
Electrical?data?	Voltage/Current?Voltage	DC15-17V/300mA
Voltage	DC24V2080mA
Power?Consumption	50W
Luminance?Efficiency	80-90LM/W
Luminance?data	Luminous?flux	4250-4750LM
Color?temperature(CCT)?	3200K±200K??(warm?white)??????????? 5500K±200K??(natural?white)???????? 4500K±300K??(?cold?white) 6000k±300K?(day?white)
Color?rendering?index(CRI)?	Ra>80?
Shell?material	Aluminum?alloy
Integrated?data	Working?temperature Ambient??temperature	-20°C~60°C?
Longevity	≥50000h
Dimensions?	L56XW40XH4mm
	Luminous?Surface?Dimension	25x25mm

Competitive Advantage:

LED cob lamp surface is fixed on aluminum layer of aluminum base PCB. The heat from chip can be spread out through aluminum layer rapidly.

1. High Lumens:

?The lumens of our products can reach up to 75-85Lumen per watt for warm white color and 90-100lumen per watt for white color. It is the first-rate in China even in the World.

2. Equable Lighting:

? ? The lighting surface is a whole part and avoid the glaring one by one lamp so it can protect humen eyes from glaring.

3. Better Heat Dissipation:

? ? ?The chips are fixed on the aluminum base directly. Due the better dissipation of the aluminum, the heat can be spread out from it quickly so this can lengthen the lifespan of LED.

Competitive Advantage:

LED cob lamp surface is fixed on aluminum layer of aluminum base PCB. The heat from chip can be spread out through aluminum layer rapidly.

1. High Lumens:The lumens of our products can reach up to 75-85Lumen per watt for warm white color and 90-100lumen per watt for white color. It is the first-rate in China even in the World.

2. Equable Lighting:The lighting surface is a whole part and avoid the glaring one by one lamp so it can protect humen eyes from glaring.

3. Better Heat Dissipation:The chips are fixed on the aluminum base directly. Due the better dissipation of the aluminum, the heat can be spread out from it quickly so this can lengthen the lifespan of LED.

Description:

Flat COB LED Module

1. LED chip is fixed on aluminum layer of aluminum base PCB. The heat from chip can be spread out through aluminum layer rapidly.2. Low lighti
