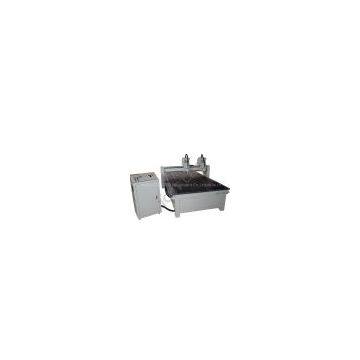

JCUT-1325-2 Woodworking CNC Router

Brand Name	JCUT		Place of Origin	China
Model Number	1325

This machine is widely used in woodworking, carving, cutting, engraving, work materials are wood, MDF, aluminum panels, ABS,acrylic, PVC, a variety of decorative materials.
The machine structure of strong, large cutting force, high speed,suitable for processing large quantities of material, there are two spindle, it is suitable for processing the same pattern and shape of the plate, twice the efficiency of an ordinary machine.

1,Solid gantry, well structure of lathe bed ,stable lathe table, fast speed and high accuracy .
2, High-speed water cooling spindle and high performance subdivision driver ensure to work stably for a long time.
3, Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time nfigured with practical and easily –learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
Parameters:



JCUT MODEL	JCUT-1325-2 CNC Router
Working Area (X*Y*Z)	1250X2500/2X150mm(49.2X98.4/2X5.9 inch)
Processing accuracy	0.01mm
Repositioning accuracy	0.03mm
Spindle	2.2KW variable speed , water-cooled
Spindle rotating speed	0-24000rpm/min
Max Moving Speed	18000mm/min
Working speed	0-10000mm/min
Driving mode	Z-Ball screw ,XY-Rack drive
Voltage	AC220V/50Hz
Max. Power consumption	5KW
Feeding Height	150mm
Drive motor	Stepper
Command	de , mmg , plt , uoo,HPGL
Compatible Software	Type3, Artcut, ArtCAM, masterCAM software
Certificate	CE,FDA
Pack dimensions	1950mm X 3250mm X 1850mm wooden trunk
Net weight	1000KG
