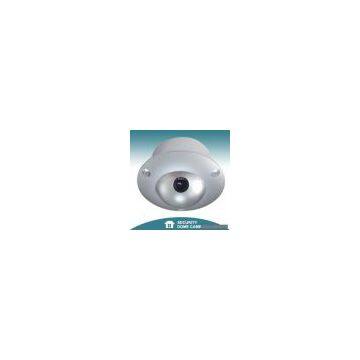

Sell UFO Dome Camera

Model No.:CD-068
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:1/4" B/W CMOS sensor specifications: 1) Image device: OV5116 2) TV system: CCIR / EIA 3) Effective pixels: 352 x 288 pixels / 320 x 240 pixels 4) Sensing srea: 3.2mm x 2.5mm 5) Scanning system: 2:1Interlace 6) Sync. system: internal 7) Resolution: 240TV lines 8) Horizontal Sync. frequency: 15.625kHz / 15.734kHz 9) Vertical Sync. frequency: 50Hz / 60Hz 10) Minimum illumination: 0.5 lux/F1.2 11) Video output: 1.0vp-p, 75 ohm 12) Gamma consumption: 0.45 13) AGC: auto 14) S/N ratio: better than 46dB 15) White balance: auto 16) Electronic shutter: 1/50 ~1/6,000 seconds 17) BLC: auto 18) Current consumption: 50mA 19) Power supply: DC12V 20) Operating temperature: -10°C~45°C, RH95% max. 21) Storage temperature: -30°C~60°C, RH95% max. 22) Lens: f=3.6mm / F = 2.0 23) Lens angle: 69° 1/3" color CMOS sensor specifications: 1) Image device: OV7910 2) TV system: PAL / NTSC 3) Effective pixels: 628 x 582 pixels / 510 x 492 pixels 4) Sensing area: 5.78mm x 4.19mm / 4.69mm x 3.54mm 5) Scanning system: 2:1Interlace 6) Sync. system: internal 7) Resolution: 380TV lines 8) Horizontal Sync. frequency: 15.625kHz / 15.734kHz 9) Vertical Sync. frequency: 50Hz / 60Hz 10) Minimum illumination: 3 lux/F1.2 11) Video output: 1.0vp-p, 75 ohm 12) Gamma consumption: 0.45 13) AGC: auto 14) S/N ratio: better than 48db 15) White balance: auto 16) Electronic shutter: 1/60~1/15,000 seconds 17) BLC: auto 18) Current consumption: 50mA 19) Power supply: DC 12V 20) Operating temperature: -10°C~46°C, RH95% max. 21) Storage temperature: -30°C~60°C, RH95% max. 22) Lens: f=6.0mm / 3.6mm F = 2.0 23) Lens angle: 69/92(N); 80/110(P) 1/3" B/W CCD sensor specifications: 1) Image device: LG/SHARP 2) TV system: CCIR / EIA 3) Effective pixels: 512 x 582 pixels / 512 x 492 pixels 4) Sensing area: 4.9mm x 3.7mm 5) Scanning system: 2:1Interlace 6) Sync. system: internal 7) Resolution: 420TV lines 8) Minimum illumination: 0 lux/F1.2 with IR; 0.05 lux / F 1.2 without IR 9) Horizontal sync resolution: 15,625kHz / 15,734kHz 10) Vertical sync resolution: 50Hz / 60Hz 11) Video output: 1.0vp-p, 75 ohm 12) Microphone: optional 13) Gamma consumption: 0.45 14) AGC: auto 15) S/N ratio: better than 48dB 16) White balance: auto 17) Electronic shutter: 1/50(CCIR) / 1/60(EIA) ~ 1/10,000 second 18) BLC: auto 19) Current consumption: max. 300mA 20) Power supply: DC12V 21) Operating Temperature: -10°C~60°C (LG) / -20°C~75°C (SHARP), RH95% max. 22) Storage Temperature: -30°C~80°C (LG) / -40°C~85°C (SHARP), RH95% max. 23) Lens: f=3.6mm / 2.8mm F = 2.0 24) Lens angle: 92/120° 1/4" color CCD sensor specifications: 1) Image device: SHARP 2) TV system: PAL / NTSC 3) Effective pixels: 512 x 582 pixels / 512 x 492 pixels 4) Sensing area: 3.6mm x 2.7mm 5) Scanning system: 2:1Interlace 6) Sync. system: internal 7) Resolution: 420TV lines 8) Minimum illumination: 1 lux/F1.2 9) Horizontal Sync. frequency: 15.625kHz / 15.734kHz 10) Vertical Sync. frequency: 50Hz / 60Hz 11) Video output: 1.0vp-p, 75 ohm 12) Gamma consumption: 0.45 13) AGC: auto 14) S/N ratio: better than 48dB 15) White balance: auto 16) Electronic shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 seconds 17) BLC: auto 18) Current consumption: max. 100mA 19) Power supply: DC12V 20) Operating temperature: -20 ~70°C, RH95% max. 21) Storage temperature: -40 ~85°C, RH95% max. 22) Lens: f=3.6mm / F = 2.0 23) Lens angle: 69° 1/3" color CCD sensor specifications: 1) Image device: SHARP 2) TV system: PAL / NTSC 3) Effective pixels: 512 x 582 pixels / 512 x 492 pixels 4) Sensing area: 4.9mm x 3.7mm 5) Scanning system: 2:1Interlace 6) Sync. system: internal 7) Resolution: 420TV lines 8) Horizontal Sync. frequency: 15.625KHz / 15.734KHz 9) Vertical Sync. frequency: 50Hz / 60Hz 10) Minimum illumination: 1 Lux/F1.2
