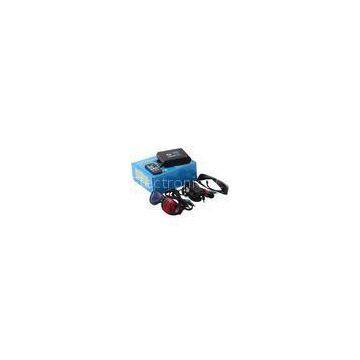

Plug-and-Play 2d To 3d Video Real-time Converter Box With IR Remote Control

Plug-and-Play 2d To 3d?video digital converter?Box With IR Remote Control

Model:? RS RS YT-V3D


For the best performance of RS YT-V3D, please read this manual carefully and keep it for further reference. Thank you for purchasing RS YT-V3D. Your satisfaction is very important to us.

3D HD Video Converter Box

Turn Your 2D Movies Collection to 3D in Real Time Convert Real Time TV Programs to3D Real 3D Movies display at 2D HDTV in 3D effect Work with 2D HDTV, 3D HDTV, 3D DLP Projector

INTRODUCTION

1.Due to lack of available 3D contents, 3D ready TV or display devices will not be viewed in 3D mode all the time. RS YT-V3D will offer real-time 2D to 3D conversion for all 2D content to combat the shortage of 3D contents.
2.RS YT-V3D provides 2D to 3D converting functions, allowing you to watch your 2D content in 3D effect! RS YT-V3D is also designed to work with 2D HDTV, 3D HDTV, and 3D DLP Projector.
3.RS YT-V3D provides impressive 3D effects on 2D HDTV, 3D HDTV, or 3D DLP Projector. On 2D HDTV, you can enjoy 3D effect by red/cyan or amber/cyan glasses, no matter source contents are 2D or 3D.??? You can convert 2D videos into 3D effect in real time on 3D HDTV simply by RS YT-V3D.
4.3D ready DLP Projector is becoming popular for Home A/V Entertainment. However, most people can not enjoy 3D program on 3D ready DLP Projector easily, due to 3D format supporting problem. With
RS YT-V3D, users can easily watch their 3D content on 3D ready DLP Projector.

FEATURES AND CONTENTS

Features:
1.2D to 3D real-time conversion
2.Support 2D HDTV, 3D HDTV, and 3D DLP Projector
3.Support 3D Ready DLP Projector
4.3D format Outputs: Red/Cyan (Amber/Cyan), Side-By-Side (Half), Frame Sequential, 2D and 3D bypass
5.Input: HDMI v1.3/v1.4, Output: HDMI v1.3, HDCP compliant
6.Plug-and-Play Installation
7.IR remote control
8.3D effect level adjustment

CONNECTION ILLUSTRATION

???????????????? RS YT-V3D Rear View

Source Devices: Digital TV STB, Satellite Receiver, HD Media Player, Blue-ray Player, Game Console etc with HDMI out interface.
?

CONNECTION & OPERATION


Connection :
Step 1: Connect HDMI cable from source device to the input port of RS YT-V3D.
Step 2: Connect HDMI cable from your 2D/3D HDTV (or 3D DLP Projector) to the output port of RS YT-V3D.
Step 3: Connect DC 5V/1A power adaptor to the DC Jack of RS YT-V3D.
Step 4: Connection finished. The power indication LED (red) will be lighted on.
Note: The factory setting is in Bypass mode. (All Mode-Indication LEDs are off except BYPASS LED on.)


Operation & Function description :

??????????????????????????????????????????????????? RS YT-V3D Front View

Use either IR remote controller or “MODE” key on the main unit to select mode.

Mode 1: 2D Program to 2D HDTV
1. When you want to convert 2D program into 3D effect and watch via 2D HDTV
2. Use Red/Cyan glasses to watch.
3. Level of 3D effect can be adjusted.
4.3D format output: 3D Red/Cyan.

Mode 2: 2D Program to 2D HDTV
1. When you want to convert 2D program into 3D effect and watch via 2D HDTV
2.Use Amber/Cyan glasses to watch.
3.Level of 3D effect can be adjusted.
4.3D format output: Amber/Cyan.

Mode 3: 2D Program to 3D HDTV
1When you want to convert 2D program into 3D effect and watch via 3DTV
2.Use Shutter (or Polarized) glasses designed for 3D HDTV
4.3D format output: 3D Side-by-Side (Half)
NOTE:??

(1) Users need to wear an active Shutter (or a passive Polarized) glasses to watch 3D effect videos on 3D HDTV.
(2) If the 3D HDTV requires an active shutter glasses for 3D viewing, please make sure the active shutter glasses can match with the 3D TV.
(3) If the 3D HDTV is a passive polarized 3D TV, please make sure the passive polarized glasses can match with the 3D TV.
(4)After converting, if you see two images (side-by-side) on TV, you will need to use TV remote control to select input 3D format (please refer to TV’s manual), to make two images into one 3D image.

Mode 4: 2D Program to 3D DLP Projector
1. When you want to convert 2D program into 3D effect and watch via 3D DLP Projector
2.Use Shutter glasses designed for 3D DLP Projector
3.Level of 3D effect can be adjusted.
4.D format output: 3D Frame Sequential (for 3D DLP Projector 60HZ)

Mode 5: 3D Program to 2D HDTV
1.When you want to watch 3D program on 2D HDTV
2.Use Red/Cyan or Amber/Cyan glasses to watch.
3.3D format input: Side-by-Side (Half) supported.
4. 3D format output: 3D Red/Cyan or Amber/Cyan.
NOTE:?

(1) When conv
