Home > Products > Ball Joint Bearings > 7230AC Single Row Angular Contact Ball Bearings For Air Compressors, High Frequency Motors

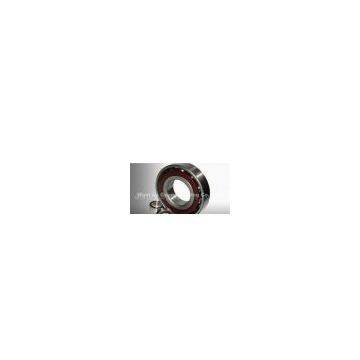

7230AC Single Row Angular Contact Ball Bearings For Air Compressors, High Frequency Motors
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
B7230AC Single Row Angular Contact Ball Bearing For Air Compressors, Printing Machines
-
7330AC, 7330B Single Row Angular Contact Ball Bearings For Radial Load, Oil Pumps
-
B7032ACQ1,B7032ACM Single Row Angular Contact Ball Bearings For Air Compressors
-
7232C,7232AC,7332B Single Row Angular Contact Ball Bearing For Axial Load, Radial Load
-
7034ACQ1 Single Row Angular Contact Ball Bearings For Machine Tool Spindles
-
7234AC, B7234AC Single Row Angular Contact Ball Bearings For Gas Turbines
Product Details
| Brand Name | KOYO, LYC, NSK, NTN, SKF, THK, TIMKEN, ZWZ，HRB | Place of Origin | China | |
| Model Number | Various standard are available |
Product Description
Certification:ISO9001, ISO14001
?7230AC Single Row Angular Contact Ball Bearings For Air Compressors, High Frequency Motors
Feature:
??? When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.
Applications:
??? These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.
| Designations | Principal dimensions(mm) | Basic load ratings(kN) | Function point | Speed ratings (rpm) | Weight (kg) | ||||||
| d | D | B | r12 min | r34 min | dyc (Cr) | stc (Cor) | a | Grease | Oil | ||
| 7230AC | 150 | 270 | 45 | 3 | 1.1 | 186 | 268 | 71.5 | 200 | 2800 | 12.1 |
