Voices Prompt Short Range 3 - 15CM Smart Car Parking System with Control Board for Factory

Voices Prompt Short Range 3 - 15CM Smart Car Parking System with Control Board for Factory

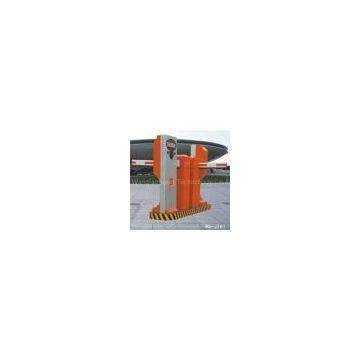

Barriers:
Dimensions: 330 x 330 x 1, 000mm
Arm material: aluminum-alloy
Housing material: 1.8mm cold-rolled steel
Voltage: 220V-240V
Motor voltage: AC 20V
Protection grade: IP65
Rail up or down time: 4 to 6 seconds
Transmission sine linkage
Boom type: straight or foldable (optional)
Rated power: 80W
Boom length: 3-6meters
Frequency: 50 to 60Hz
Boom dimensions (W x H): 45 x 100mm
Working temperature: -45 to 80 centigrade degree
Boom weight: 5.5kg
Operating humidity: no less than 90%
Operating life: 500 million
Net weight: 49kg
Gross weight: 55kg

Description:
It is a modern series parking management system for managing pay-to-park facilities with high traffic flow, for both occasional and registered parker.

For a hourly parker, when he comes to entry, he himself presses a button to take a proximity card from entry controller, after that the entry barrier automatically opens and he enters, when he comes to exit where a manual-pay-station is installed nearby, he gives his card to the guard, the guard read the card on a card reader, parking amount will be shown on the LED display or computer, then the parker pay cash and then barrier open and he leaves.

For a registered parker, he enters or leaves by card swiping.

Entrance equipment:
Automatic barrier (straight-arm or foldable-arm) for entry and exit
Vehicle sensor and cable
Controller for entry and exit
Control board
ID reader
Temporary Card dispenser
LED graphic display on the controller
Voices prompt (optional)
Villa inter con system (optional)
Transformer power (optional)
ID card register
Management software and software dog
Communication shift
ID card
The main engine of villa inter con system (optional)

Applications:
residential community, office building, factory, hosipital, government building etc.
