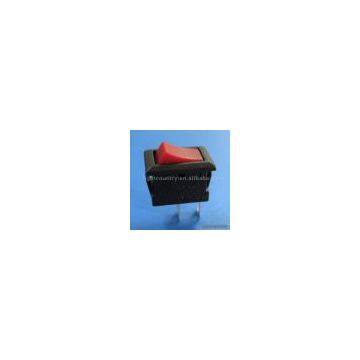

Sell Mini Rocker Switch

Model No.:MRA series
Product Origin:China
Brand Name:LightCountry
Price Terms:FOB, CIF
Payment Terms:T/T, L/C
Certification:ISO9001, UL, VDE/ENEC, CQC
Description:Features: 1) Electrical rating: a) UL: 3A, 125V / 250V AC b) VDE: 3A, 250V AC c) CQC: 3A, 250V AC 2) Mechanical life endurance: 30,000 cycles 3) Electrical life endurance: 10,000 cycles 4) Contact resistance: ≤20mΩ (initial) 5) Insulation resistance: ≥1,000MΩ (500V DC between open contacts) 6) High voltage resistance: ≥1,500V 1 minute 7) Ambient temperature: -20 ~ +85°C 8) Storage temperature: -30 ~ +85°C 9) Atmospheric humidity: max. 85% 10) Actuating force: 4 ~ 8N (depending on different switch functions) 11) Flammability: UL94 V-2 12) Material of housing: PA66 13) Material of rocker: PA66 14) Contacts: silver alloy 15) Terminal: brass (silver plated) 16) Temperature rise at the terminal: max. 30°C, (UL 1054) 17) Solder ability of terminal: max. 350°C, 4s (no pressure may be placed on the terminals when soldering by hand) 18) Options of switch functions: a) MRA1 SPST: on (left), none (center), off (right) b) MRA2 SPDT: on (left), none (center), on (right) 19) Dimension: 15 x 10.50mm 20) Panel cut out: 9.10 ~ 9.20mm x 13.6.10 ~ 14.10mm Inner packing: Foam, bags, boxes Outer packing: Export carton
