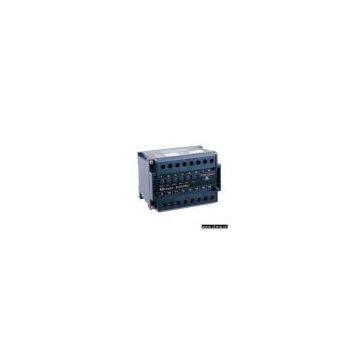

Sell Power Transducer

Place of Origin	China

Model No.:YDD-P3Q3
Product Origin:China
Brand Name:yadata
Price Terms:FOB, CIF
Payment Terms:L/C
Certification:
Description:Product Name: Power TransducerModel Number: YDD-P3Q3Place of Origin: ChinaFeatures 1) Made by SCM technology with good stability 2) Reflects accurately the transferring direction of the measured power 3) Be suitable for the measurement of 3P3W system active power, reactive power 4) Order according to user's request, multi power quality such as current, voltage and power combined transducer, and 3P3W full power quality measuring, RS485 output intelligent transducer Model description and parameter: 1) Example: YDD-P3-V1- A2-P2-08 2) Name: 3P3W active power transducer 3) Voltage range: 100V 4) Current range: 5A 5) Auxiliary supply: AC 220V, 5% Performance indexes: 1) Standard: GB/T 13850-1998, idtIEC688:1992 2) Accuracy: 0.2%, 0.5% 3) Whole power consumption: ≤5VA 4) Working stability: per year< 0.2% 5) Working frequency withstand voltage: AC 2.0kV/min.1mA 6) Insulation resistance: ≥20MΩ (DC 500V) 7) Surge voltage: 5kV (peak value), 1.2/50 8) Response time: ≤350ms 9) Input range: AC 0 &sim 10A, AC 0 &sim 500V, frequency 50 / 60Hz 10) Absorbing power: a) U< 0.25VA, b) I<0.2VA/ 11) Overload ability: a) Current: 2 times continuum, 30 times/s b) Voltage: 2 times continuum 12) Output signal: DC 0 ～ 20mA, 4 ～ 20mA, 12 ～ 20mA, 0 ～ 1V, 0 ～ 5V 13) Load resistance: a) Current output: RL≤600Ω b) Voltage output: RL≥2KΩ 14) Working condition: -10 ～ 50oC, 20% ～ 90% 15) Storage condition: -40 ～ 70oC, 20% ～ 95% 16) Installation mode: DIN (35mm) guide apparatus and fixation by M4
