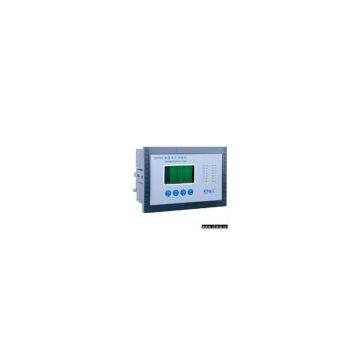

Sell Multi Power Analyzer

Place of Origin	China

Model No.:YD2100
Product Origin:China
Brand Name:Yadata
Price Terms:CIF, FOB
Payment Terms:L/C
Certification:CE
Description:Product Name: Multi Power AnalyzerModel Number: YD2100Place of Origin: ChinaFeatures: 1) Functions: a) Measures 34 parameters of 3I, 3V, 3U, 3P, ΣP, 3Q, ΣQ, 3S, ΣS, F, PF, ±ΣWh, ±ΣQh and neutral current (IO) b) Accuracy: V, I, F ≤2%, other parameters ≤0.5% c) Baud rate: 300 / 600 / 1,200 / 2,400 / 4,800 / 9,600 / 19,200 d) Lattice LCD display, Chinese / English interface may be transferred e) Has the function of 1 - 19 harmonic analysis f) 6 routes remote signaling, 3 routes remote control and DC 0 - 10V DC voltage signal input 2) Technology indexes: a) Standards: GB/T13850-1998, IEC688:1992, DL/T721-2000, IEC61000-4 b) Accuracy: i) U, I, power, power factor: <0.5% RD ii) Active electric energy, reactive electric energy, phase voltage: <1.0% RD iii) Frequency: ≤1.0% RD c) Display units: V/kV/MV/, A/kA, W/kW/MW/GW, Hz, var/kvar/Mvar, VA/kVA/MVA/GVA, Wh/kWh/MWh/varh/kvarh/Mvarh d) Input range: i) U: 5 - 120V / 600V (max. 600V) ii) I: 0 - 1A / 5A (max. 6A) e) Absorbing power consumption: i) Voltage per route: <0.4VA (347V) / 0.2VA (150V) ii) Current per route: <0.1VA (5A) f) Overload capability: i) U: 750V continuum / 1,000V 10s / 1,200V 3s ii) I: 2 times rating continuum / 10s rating 30s g) Measuring system: connection mode 3P4W / 3P3W / 1P2W, 1P3W / 3P3W, balance / 3P4W balance, may set parameters by software through keyboard and serial port h) Programmable setting: programmer mode (password) i) Measuring system choice: 3P4W, 3P3W, 1P2W, 1P3W, 3P3W balance, 3P4W balance, and CT, PT variable ratio 1-10,000 j) Display content: form feed time / menu with options k) Communication: i) Baud ratio: 1,200 / 2,400 / 4,800 / 9,600 / 19,200 ii) Parity bit: odd / even / no parity bit l) Address: 1 - 255 m) Electric energy accumulating reposition: needs password n) Communication serial port: i) RS485 (standard) / RS232 (with options) ii) Communication rules: MODBUS-RTU o) Dielectric strength object: i) Between input / output / power supply ii) Testing method: AC 2kV 1min leakage current 2mAh p) Surge: 1.2/50-8/20μs surge power supply 4kV (1.2 x 50μs), I/O line 2kV q) Quick transient pulse series: i) Power supply: 4kV, 2.5 kHz ii) I/O line: 2kV, 5 kHz iii) Contact discharge: 6kV iiii) Gas spacing discharge: 8kV r) RF electronic magnetic field: 10V/m medium intensity electromagnetic radiation (like an interphone less than 1m) s) Stability: i) Temperature range: -10 - 50°C ii) Temperature influence: 100ppm°C iii) Long-term stability: <0.2% per year t) Working condition: i) Temperature: -10 - 50°C ii) Humidity: 20 - 95% (no dew) u) Storage condition: i) Temperature: -25 - 75°C ii) Humidity: 20 - 95% (no dew) v) Power supply: i) Power supply voltage: AC 85 - 265V, 50/60Hz, DC 85 - 330V (standard), AC 30 - 60V, 50 / 60Hz, DC 18 - 90V (may choose) ii) Full power consumption: <4w w) External dimensions: i) External dimensions: 201 x 140 x 115mm ii) Installation hole dimensions: 176 x 126mm
