Home > Products > Truck diesel engine and Engineering engine > Diesel engine for big power Truck

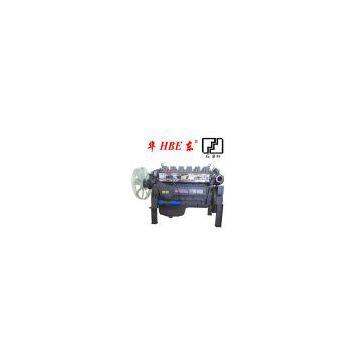

Diesel engine for big power Truck
US$ 6818 - 8333
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | HBE | Place of Origin | China | |
| Model Number | HD6126 |
Product Description
HD6126 Series Truck Diesel Engine
Model HD6126.58 HD6126.56 HD6126.50 HD6126.50
Bore/stroke (mm) 126×130 126×130 126×130 126×130
Displacement (L) 9.726 9.726 9.726 9.726
Rated output (kW) 176-240 193-262 206-280 213-290
Rated speed (r/min) 2200 2200 2200 2200
Peak torque (Nm) 1000 1100 1160 1160
Peak torque/speed 1300~1600 1300~1600 1100~1600 1100~1600
(r/min)
fuel consumption ≤198 ≤198 ≤198 ≤198
(g/kW.h)
Net weight (kg) 875 875 875 875
Over all dimension 1566×582 1566×582 1566×582 1566×582
(mm) (L×W×H) ×1024 ×1024 ×1024 ×1024
Model HD6126.46 HD6126.44 HD6126.44 HD6126.38
Bore/stroke (mm) 126×130 126×130 126×130 126×130
Displacement (L) 9.726 9.726 9.726 9.726
Rated output (kW) 266-360 243-330 235-320 280-380
Rated speed (r/min) 2200 2200 2200 2400
Peak torque (Nm) 1460 1250 1250 1460
Peak torque/speed 1400~1600 1400~1600 1400~1600 1400~1600
(r/min)
fuel consumption ≤198 ≤198 ≤198 ≤198
(g/kW.h)
Net weight (kg) 875 875 875 875
Over all dimension 1566×582 1566×582 1566×582 1566×582
(mm) (L×W×H) ×1024 ×1024 ×1024 ×1024
Model HD6126.34 HD6126.31 HD6126.30
Bore/stroke (mm) 126×130 126×130 126×130
Displacement (L) 9.726 9.726 9.726
Rated output (kW) 250-340 228-310 221-300
Rated speed (r/min) 2200 2200 2200
Peak torque (Nm) 1350 1160 1160
Peak torque/speed 1100~1600 1100~1600 1100~1600
(r/min)
fuel consumption ≤198 ≤198 ≤198 ≤198
(g/kW.h)
Net weight (kg) 875 875 875 875
Over all dimension 1566×582 1566×582 1566×582 1566×582
(mm) (L×W×H) ×1024 ×1024 ×1024 ×1024
Model HD6126.58 HD6126.56 HD6126.50 HD6126.50
Bore/stroke (mm) 126×130 126×130 126×130 126×130
Displacement (L) 9.726 9.726 9.726 9.726
Rated output (kW) 176-240 193-262 206-280 213-290
Rated speed (r/min) 2200 2200 2200 2200
Peak torque (Nm) 1000 1100 1160 1160
Peak torque/speed 1300~1600 1300~1600 1100~1600 1100~1600
(r/min)
fuel consumption ≤198 ≤198 ≤198 ≤198
(g/kW.h)
Net weight (kg) 875 875 875 875
Over all dimension 1566×582 1566×582 1566×582 1566×582
(mm) (L×W×H) ×1024 ×1024 ×1024 ×1024
Model HD6126.46 HD6126.44 HD6126.44 HD6126.38
Bore/stroke (mm) 126×130 126×130 126×130 126×130
Displacement (L) 9.726 9.726 9.726 9.726
Rated output (kW) 266-360 243-330 235-320 280-380
Rated speed (r/min) 2200 2200 2200 2400
Peak torque (Nm) 1460 1250 1250 1460
Peak torque/speed 1400~1600 1400~1600 1400~1600 1400~1600
(r/min)
fuel consumption ≤198 ≤198 ≤198 ≤198
(g/kW.h)
Net weight (kg) 875 875 875 875
Over all dimension 1566×582 1566×582 1566×582 1566×582
(mm) (L×W×H) ×1024 ×1024 ×1024 ×1024
Model HD6126.34 HD6126.31 HD6126.30
Bore/stroke (mm) 126×130 126×130 126×130
Displacement (L) 9.726 9.726 9.726
Rated output (kW) 250-340 228-310 221-300
Rated speed (r/min) 2200 2200 2200
Peak torque (Nm) 1350 1160 1160
Peak torque/speed 1100~1600 1100~1600 1100~1600
(r/min)
fuel consumption ≤198 ≤198 ≤198 ≤198
(g/kW.h)
Net weight (kg) 875 875 875 875
Over all dimension 1566×582 1566×582 1566×582 1566×582
(mm) (L×W×H) ×1024 ×1024 ×1024 ×1024
