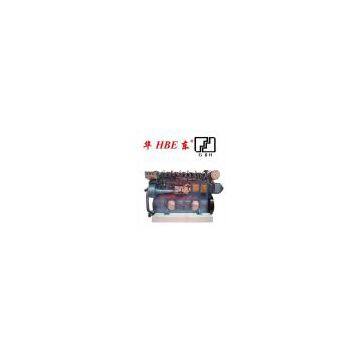

CW6200 diesel engine

CW200 series diesel engine is developed and manufactured based on researching techniques of medium speed engine both at home and abroad. It is characterized by rational construction, advanced performance index, reliable running operation and easy maintenance, etc.

The series of engines has passed through the type approval test of China Classification Society and Register of Fishing Vessel of PRC, got ISO9001:2000 system certificate. It is an optimum power source for passenger liner, fishing ship, ro-ro vessel and medium-small containership, and also used for generating set for ship.

Structure Advantages

Cylinder system

Case-type cylinder block has the feature of smaller distortion and higher strength. The Rectangle build-in intake pipe has more reliability.

Crankshaft

The forging crankshaft is with structure of continuous fiber. Its rigidity of fatigue, bending and torsion resist is better than casting crankshaft. The structure of crankshaft has nitriding treated and it is more wearable and the reliability is thus increased.

Cylinder Head

Cylinder head and rock arm are a whole integer. Simple structure makes maintenance convenient.

Cylinder Liner

Cylinder liner is made by proof-erode and wearable material, with less distortion and low wearing, and the lifetime can be over sixty thousand hours. Forced cooling makes excellent lubricating condition, and prevents erode in low temperature.

Piston

Cross section of the piston is ellipse when cool, the vertical section is drum and is round when hot. This type of piston has less space with cylinder liner, and can reduce mechanical wear and tear. The mechanical efficiency of the engine has been increased and the fuel consumption has been reduced.

Connecting Rod

It is forced by high grade. The bearing of big end is cut horizontal and fastened by four bolts. The carrying capacity of bearing big end has been increased a lot.

Performance Advantages

High reliability

Crankshaft and connecting rod is forged by high-grade steel and the transmission gears of camshaft are made by alloy steel. Broken has been avoided completely. The cylinder liner is supported by three points with good rigidity and heated evenly, and reduced wearing. It is shown in 800 hours continuous testing that the overhaul time is over thirty thousand hours.

Easy maintenance

1. upper camshaft without push rod has decreased failures

2. Sleeve spring are using in shock absorber, and no maintenance is needed during the engine is running.

Low fuel consumption

The lowest fuel consumption at the condition of 80%~90% nominal output is 195—200g/kW.h, and it is the long-term running point of ships. The oil consumption 1.0g/kW.h, and the characteristic curve is flat. It is very economic at normal conditions.

Two-stage inter cooling

Two-stage inter cooling is used to reduce intake temperature, and the intake volume is thus increased and makes the combustion more completely. The emission reaches to IMO standard and is qualified by CCS. As the intake temperature has been decreased the heat loading has been decreased and the reliability has been increased.

Low emission

Pulse turbo charging and two-stage intake & deep inter cooling are using in the engine, and the smoke is light-colored during the running of the engine. The emission is lower than Euro II standard and the exhaust smoke is 0.55RB compare with the standard of up to 2.5RB.

Weichai CW200ZC/XCW200ZC series marine diesel engine is developed and manufactured based on researching techniques of medium speed engine both at home and abroad. It is characterized by rational construction, advanced performance index, reliable running operation and easy maintenance, etc. Its emission meets the requirements of MARPOL 73/78 of IMO (International Marine Origination).

The series of engines has passed through the type approval test of China Classification Society and Register of Fishing Vessel of PRC, got ISO9001:2000 system certificate. It is an optimum power source for passenger liner, fishing ship, ro-ro vessel and medium-small containership, and also used for generating set for ship.

Structure Advantages of Marine Diesel Engine

Cylinder system

Case-type cylinder block has the feature of smaller distortion and higher strength. The Rectangle build-in intake pipe has more reliability.

Crankshaft

The forging crankshaft is with structure of continuous fiber. Its rigidity of fatigue, bending and torsion resist is better than casting crankshaft. The structure of crankshaft has nitriding treated and it is more wearable and the reliability is thus increased.

Cylinder Head

Cylinder head and rock arm are a whole integer. Simple structure makes maintenance convenient.

Cylinder Liner

Cylinder liner is made by proof-erode and wearable material, with less distortion and low wearing, and the lifetime can be over sixty thousand hours. Forced cooling makes excellent lubricating condition, and prevents erode in low temperature.

Piston

Cross section of the piston is ellipse when cool, the vertical section is drum and is round when hot. This type of piston has less space with cylinder liner, and can reduce mechanical wear and tear. The mechanical efficiency of the engine has been increased and the fuel consumption has been reduced.

Connecting Rod

It is forced by high grade. The bearing of big end is cut horizontal and fastened by four bolts. The carrying capacity of bearing big end has been increased a lot.
