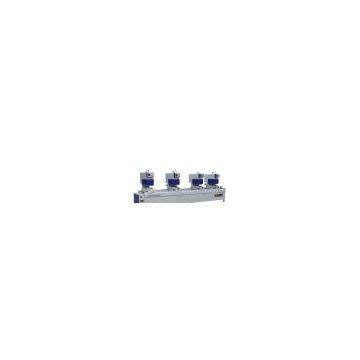

Four-head Seamless Welding Machine (Double Side)

The machine suitable for colored, co-extrusion and sprayed PVC profiles, the welding slag immediately cut by the cutter installed on the clamp devices, hair crack less than 0.2mm. It can process shapes of   etc. It adopts JDB solid oilless bearing kinematic pair, LM linear guide kinematic pair and Mitsubishi PLC control system result high accuracy and efficiency.

Technical Parameter:

Model                SHWG4-120×4500

Input voltage          380/220V 50Hz

Input power           4.5Kw

Air pressure           0.6~0.8MPa

Air consumption       260L/min

Welding length        400~4500mm

Welding height        20~120mm

Overall dimension      5300×990×1700mm

Technical Parameter

Model               SHWG3-120×3600

Input voltage         380/220V 50Hz

Input power          3.5Kw

Air pressure          0.6~0.8MPa

Air consumption      200L/min

Welding length       400~3600mm

Welding height       20~120mm

Overall dimension    4300×990×1700mm

Technical Parameter

Model               SHWG2-120×3600

Input voltage         220V 50Hz

Input power          2.5Kw

Air pressure          0.6~0.8MPa

Air consumption      120L/min

Welding length       400~3600mm

Welding height       20~120mm

Overall dimension    4300×990×1700mm
