Dual band mobile signal repeaters/ pico repeater /signal boosters

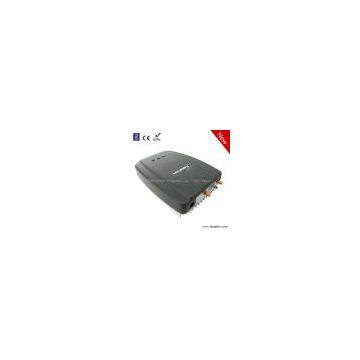

F10B-DB dual system repeater is a simplified F10 repeater in order to have lower cost and smaller size. It has a plastic cover closet, elegantly designed and also smaller sized so that it can be a decoration in stead of "an intruder". It still supports any two mobile systems existing in the world to help end users to improve mobile signals for much better phone call quality and smoother data transmission. It is designed to support coverage area up to 100~600 square meters with proper engineering. Below are the main features.

1:The consumer repeater is an ideal solution for providing a cost effective improvement in cellular in-building coverage of

Home, office, restaurant or building, in the quickest time possible.

2: Manual gain control (MGC 15dB range with 2 DIP switches for each link) available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.

3:To maintain safe and specific output signal levels and give alarms on self-oscillation, the repeater has built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.

4:Auto shut off function available for both uplink and downlink to avoid deep self-oscillation from jamming the towers, saving your trouble from operators.

5:Wide band feature enables all devices operating within the wide frequency range of the repeater to see an improvement

   in performance.

6:Multiple phones and other handheld devices throughout a building can benefit from a wireless repeater.

7:Supports up to (30) users / calls simultaneously.

8:Extended phone battery life. (Your phone does not need to put out as much power due to improved reception.)

F10B repeater kit is available as a total solution, PLUG & PLAY:

1.Repeater unit with power cord and adaptor.

2.External Panel 7dBi as donor antenna.

3.10meter long 3D coax cable with loss of 3.5~5dB depending on different working frequencies (800~2500MHz).

4.Whip server antenna SMA Male.
