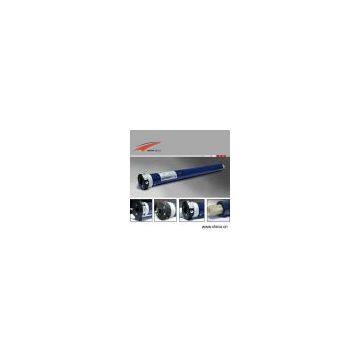

Sell Tubular Motors

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:T/T, L/C
Certification:ISO9001
Description:Product Name: Tubular MotorsPlace of Origin: ChinaTechnical data: WSS50/10 Nominal torque (N.m): 10 Tube diameter (mm): 45 Nominal consumption (W): 140/160 Nominal voltage (V): 230 Nominal current (A): 0. 60/0. 74 Output speed (r/min): 13/17 Frequency (Hz): 50Hz Running time (min): 4min Thermal protector (c): 130 Protection index: IP44 Net weight (kg): 2. 15 Total length (mm): 52; 450 Maximum turns (turn): 40 Cable length (mm): 2,000 Technical data: WSS50/20 Nominal torque (N.m): 20 Tube diameter (mm): 45 Nominal consumption (W): 160/220 Nominal voltage (V): 230 Nominal current (A): 0. 74/0. 95 Output speed (r/min): 13/17 Frequency (Hz): 50 Running time (min): 4 Thermal protector (c): 130 Protection index: IP44 Net weight (kg): 2. 15 Total length (mm): 520, 450 Maximum turns (turn): 40 Cable length (mm): 2,000 Technical data: WSS50/30 Nominal torque (N.m): 30 Tube diameter (mm): 45 Nominal consumption (W): 220/270 Nominal voltage (V): 230 Nominal current (A): 0. 95/1. 15 Output speed (r/min): 13/17 Frequency (Hz): 50 Running time (min): 4 Thermal protector (c): 130 Protection index: IP44 Net weight (kg): 2. 54 Total length (mm): 590, 520 Maximum turns (turn): 40 Cable length (mm): 2,000 Technical data: WSS50/40 Nominal torque (N.m): 40 Tube diameter (mm): 45 Nominal consumption (W): 245 Nominal voltage (V): 230 Nominal current (A): 1. 02 Output speed (r/min): 13 Frequency (Hz): 50 Running time (min): 4 Thermal protector (c): 130 Protection index: IP44 Net weight (kg): 2. 76 Total length (mm): 590, 520 Maximum turns (turn): 40 Cable length (mm): 2,000 Technical data: WSS50/50 Nominal torque (N.m): 50 Tube diameter (mm): 45 Nominal consumption (W): 270 Nominal voltage (V): 230 Nominal current (A): 1. 15 Output speed (r/min): 13 Frequency (Hz): 50 Running time (min): 4 Thermal protector (c): 130 Protection index: IP44 Net weight (kg): 2. 76 Total length (mm): 590, 520 Maximum turns (turn): 40 Cable length (mm): 2,000
